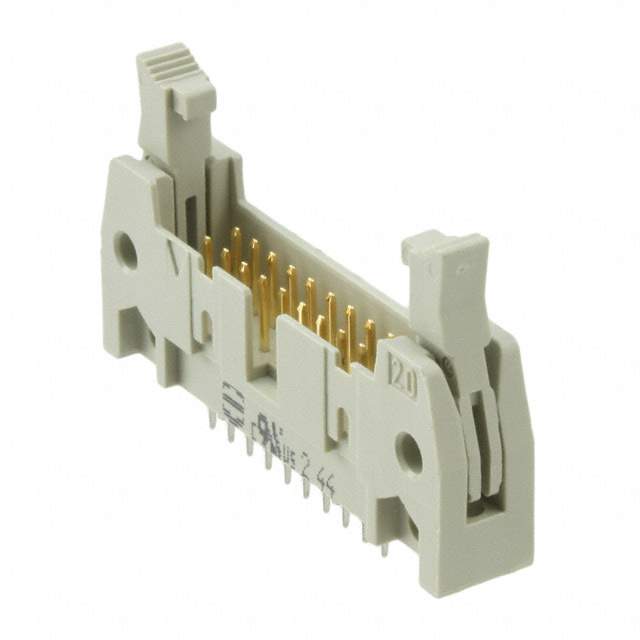

09185206902

Name: 09185206902
Brand: HARTING
SKU: 853449
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	09185206902
Manufacturer	HARTING
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Datasheet	09185206902 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	HARTING
Series	SEK
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.177" (4.50mm)
Overall Contact Length	0.713" (18.10mm)
Insulation Height	0.681" (17.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853449-09185206902
Ultra Librarian 3D Model	Ultra Librarian 09185206902 CAD Model

Description

The 853449-09185206902 is a male pin header connector from the SEK series manufactured by HARTING.

Features: Keying Slot, Mounting Flange
Positions: 20
Rows: 2
Termination: Solder
Locking: Latch Lock/Eject Hooks
Contact Material: Copper Alloy
Flammability Rating: UL94 V-0
Pitch: 0.100" (2.54mm)
Mating Contact Finish: Gold
Temperature Range: -55°C to 125°C
Connection Type: Board to Cable/Wire
Mounting: Through Hole
Packaging: Bulk
Product Status: Active
