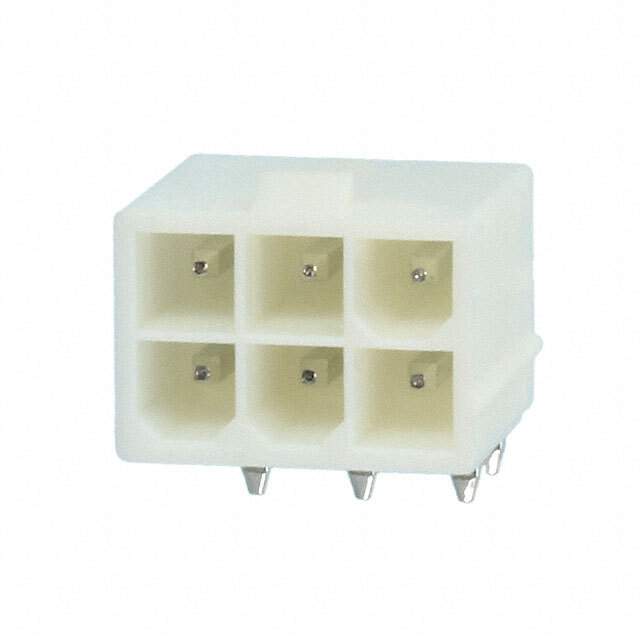

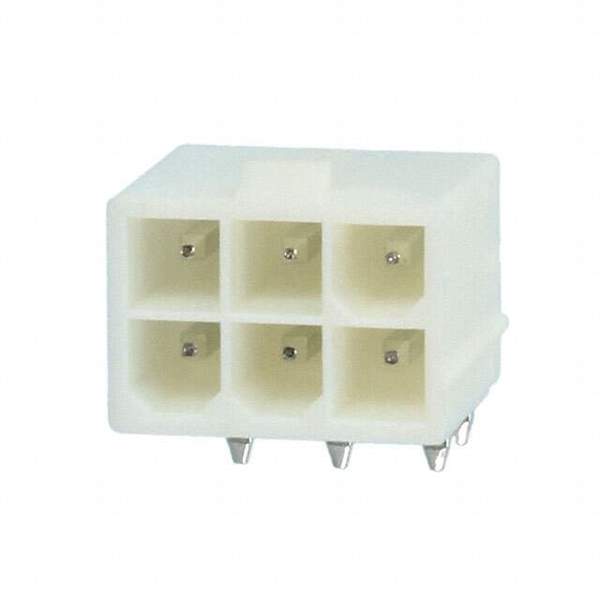

Name: 1586042-6
Brand: TE Connectivity
SKU: 1334270
Availability: InStock
Rating: 4.84 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.142" (3.60mm)
Insulation Height	0.402" (10.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	80.0µin (2.03µm)
Contact Finish - Post	Tin
Contact Material	Brass Alloy
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	9A
Voltage Rating	600VAC
Contact Finish Thickness - Post	80.0µin (2.03µm)
Applications	General Purpose, Industrial, Lighting
Base Product Number	1586042
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1586042-6-ND,A114900,-1586042-6-SI
Standard Package	280
Win Source Part Number	1334270-1586042-6
Ultra Librarian 3D Model	Ultra Librarian 1586042-6 CAD Model

Description

The TE Connectivity AMP Connectors 1334270-1586042-6 is a header male pin rectangular connector that comes in a tray package.

Connector Type: Header
Contact Type: Male Pin
Positions: 6
Positions Loaded: All
Rows: 2
Mounting: Through-Hole, Right Angle
Termination: Solder
Fastening Type: Locking Ramp
Contact Material: Brass Alloy
Voltage Rating: 600VAC
Design: Shrouded-4 Wall
Row Spacing: 0.165" (4.20mm)
Pitch-Mating: 0.165" (4.20mm)
Contact Finish-Mating: Tin, 80.0μin (2.03μm)
Contact Finish-Post: Tin, 80.0μin (2.03μm)
Insulation Color: Natural
Insulation Material: Polyamide (PA), Nylon
Temperature Range: -40°C to 105°C
Current Rating: 9A
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
