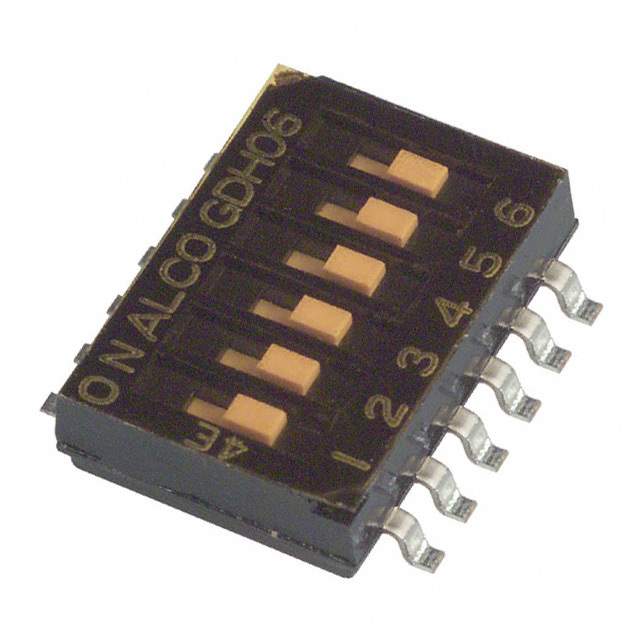

1571983-8 Real Image
Same model may have multiple batches, images only for reference.

1571983-8

Part No 1571983-8
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series GDH
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.344" (8.75mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1571983
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names GDH06S04,2266-1571983-8,450-1354
Standard Package 50
Win Source Part Number 1230120-1571983-8
Ultra Librarian 3D Model Ultra Librarian 1571983-8 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches GDH06S04 is a DIP switch that is commonly used in various applications.

  • Manufacturer: TE Connectivity ALCOSWITCH Switches
  • Positions: Six
  • Actuator Level: Flush and Recessed
  • Washable: Yes
  • Temperature Range: -30°C to 85°C
