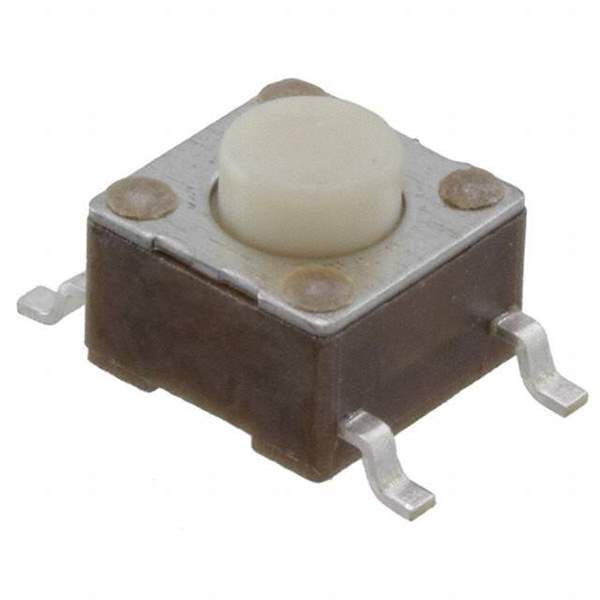

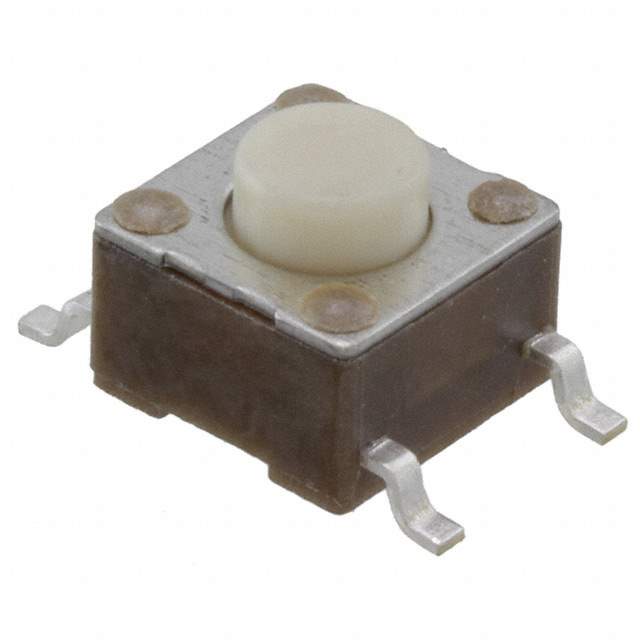

1571563-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 260gf
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -35°C to 85°C
Win Source Part Number 107911-1571563-4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1571563-4 CAD Model

Description

Product Overview

The 1571563-4 relay is a versatile and compact component designed to manage and control electrical circuits. Ideal for switching applications, it boasts absolute reliability and efficiency.

Features and Benefits

  • Compact design for space efficiency
  • Robust contact rating for high power applications
  • Quick and easy installation
  • Wide range of operating voltages

Applications

  • Home appliances
  • Automotive applications
  • Industrial control
  • Lighting systems

The 1571563-4 relay is particularly favored for its long service life and is ideally suited for applications demanding consistent and reliable circuit control.
