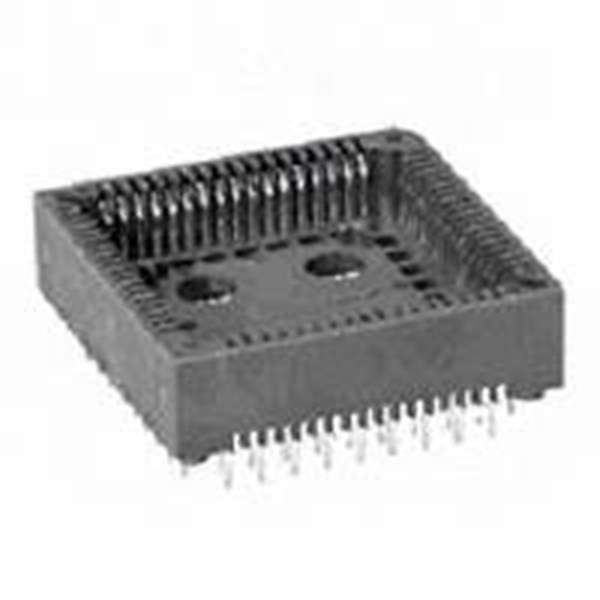

1571541-1 Real Image
Same model may have multiple batches, images only for reference.

1571541-1

Part No 1571541-1
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 44POS TIN  /  44 (4 x 11) Pos PLCC Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr TE Connectivity AMP Connectors
Series PCS
Package Bulk
Product Status Obsolete
Type PLCC
Number of Positions or Pins (Grid) 44 (4 x 11)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 180.0µin (4.57µm)
Contact Material - Mating Copper Alloy
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 180.0µin (4.57µm)
Contact Material - Post Copper Alloy
Housing Material Polyphenylene Sulfide (PPS)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Base Product Number 1571541
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1571541-1-ND,15715411,PCS-044A-1-LF,-PCS-044A-1-LF-SI,A112403,-1571541-1-SI,-1571541-1,-PCS-044A-1-LF-SI-ND
Standard Package 26
Win Source Part Number 1015775-1571541-1
Ultra Librarian 3D Model Ultra Librarian 1571541-1 CAD Model

Description

The PCS series PLCC type socket connector is a high-quality connector that is designed for use in various applications.

  • Design: Closed frame
  • Termination: Solder
  • Housing Material: Polyphenylene sulfide (PPS)
  • Pitch-mating: 0.100 inches (2.54mm)
  • Number of Positions: 44 (4 x 11)
  • Contact Finish: Tin
  • Contact Material: Copper alloy
  • Package: Bulk
  • Standard Package: 26
