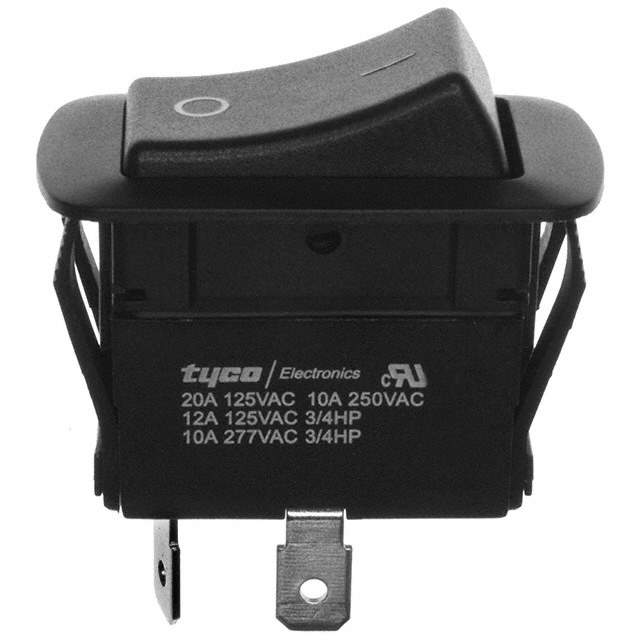

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series PRC
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 20A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions Rectangular - 36.60mm x 21.20mm
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life 100,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number 1571095
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1316283-1571095-2
Ultra Librarian 3D Model Ultra Librarian 1571095-2 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 1571095-2 is a SPST rocker switch with an on-off switch function.

  • Switch Function: On-Off
  • Voltage Rating: 125V AC
  • Current Rating (Amps): 20A (AC)
  • Actuator Type: Concave (Curved)
  • Actuator/Cap Color: Black
  • Panel Cutout Dimensions: Rectangular - 36.60mm x 21.20mm
  • Ingress Protection: IP66 - Dust Tight, Water Resistant
  • Operating Temperature Range: -20°C to 85°C
  • RoHS Compliant: No
