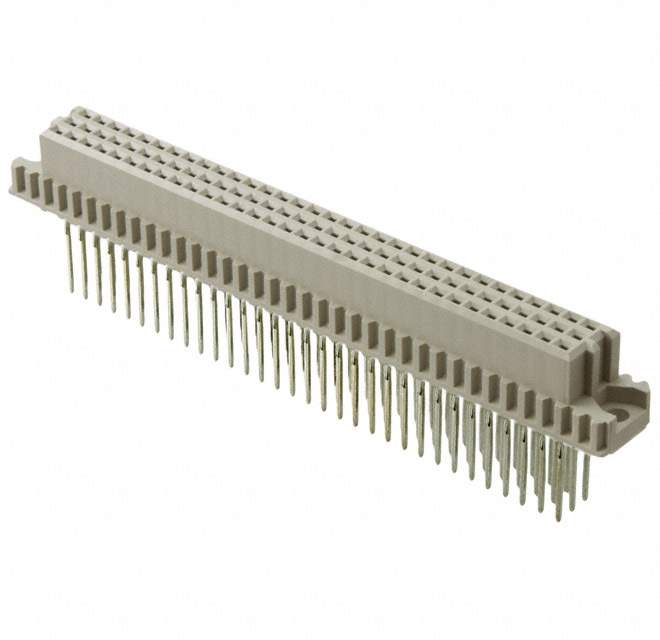

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C
Level, Class 3
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polyester, Glass Filled
Base Product Number 148057
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 148057-5-ND,1480575,A29049
Standard Package 30
Win Source Part Number 1002432-148057-5
Ultra Librarian 3D Model Ultra Librarian 148057-5 CAD Model

Description

The 1002432-148057-5 backplane connector, manufactured by TE Connectivity AMP Connectors, is a high-quality electronic component that is ideal for use in DIN 41612 applications.

  • Package: 24-QFN (3x5)
  • Positions: 96
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Receptacle
  • Contact Gender: Female
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Insulation Material: Polyester, Glass-Filled
  • UL94 V-0 Rated: Yes
  • Standard Package: 30
