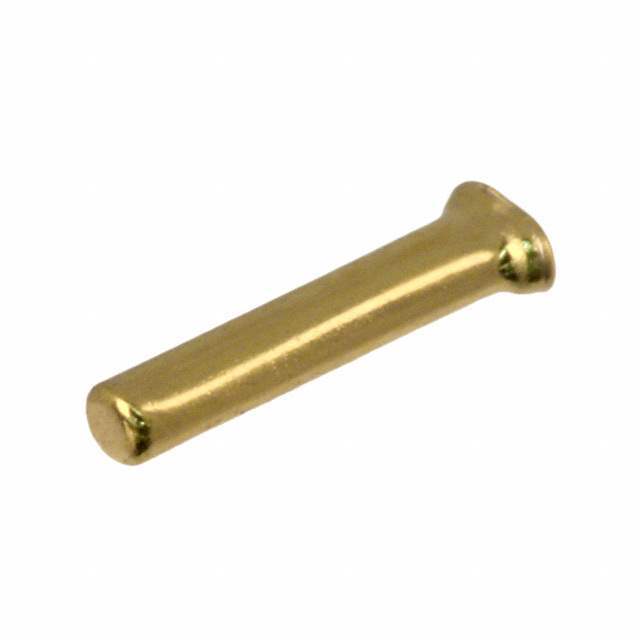

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309676-147444-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > PC Pin Receptacles, Socket Connectors
Packaging Bulk
Part Status Obsolete
Tail Type No Tail
Termination Solder
Length - Overall 0.230" (5.84mm)
Accepts Pin Diameter 0.013" ~ 0.020" (0.33mm ~ 0.51mm)
Mounting Hole Diameter 0.040" (1.02mm)
Flange Diameter 0.059" (1.50mm)
Ultra Librarian 3D Model Ultra Librarian 147444-1 CAD Model

Description

Pin Receptacle Connector 0.013" ~ 0.020" (0.33mm ~ 0.51mm) No Tail Solder
