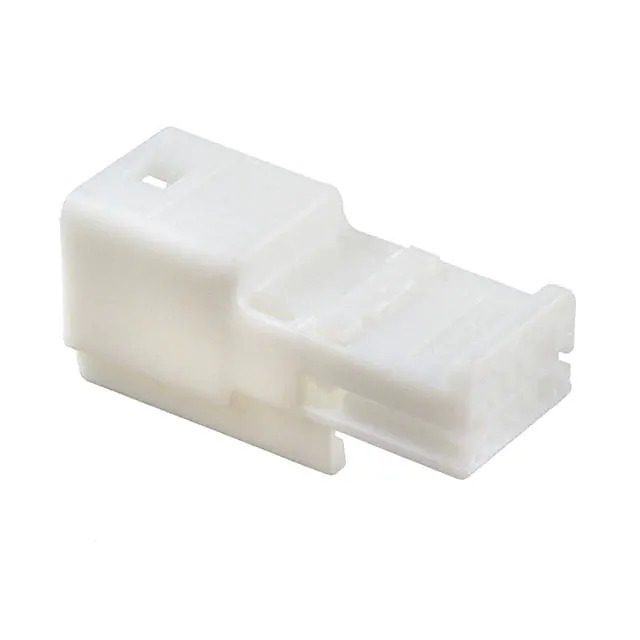

1473793-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series .025
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Tab
Number of Positions 8
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination IDC
Fastening Type -
Color Natural
Features -
Temperature Range - Operating -30°C ~ 80°C
Note Contacts Not Included
Base Product Number 1473793
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365504-1473793-1
Ultra Librarian 3D Model Ultra Librarian 1473793-1 CAD Model

Description

The TE Connectivity AMP Connectors .025 series is a rectangular connector housing designed for use in connectors and interconnects.

  • Temperature Range: -30°C to 80°C
  • Mounting Type: free hanging (in-line)
  • Pitch: 0.087" (2.20mm)
  • Base Product Number: 1473793
  • HTSUS: 8536.69.8000
  • Product Status: active
  • ECCN: EAR99
  • Connector Type: receptacle
  • Positions: 8
  • Rows: 2
  • Contact Termination: IDC
  • Color: natural
  • Contacts Included: No
