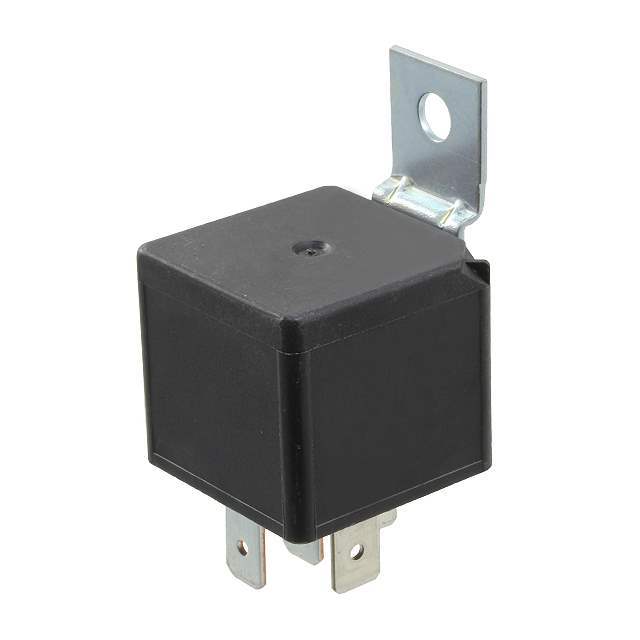

1432791-1 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

1432791-1

Part No 1432791-1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 30A 12V
Datasheet
1432791-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309869-1432791-1
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Relays > Power Relays, Over 2 Amps
Packaging Bulk
Part Status Obsolete
Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30 A
Switching Voltage 14VDC - Nom
Coil Current 133 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage 7.8 VDC
Must Release Voltage 1.2 VDC
Operating Temperature -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Ultra Librarian 3D Model Ultra Librarian 1432791-1 CAD Model

Description

General Purpose Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
