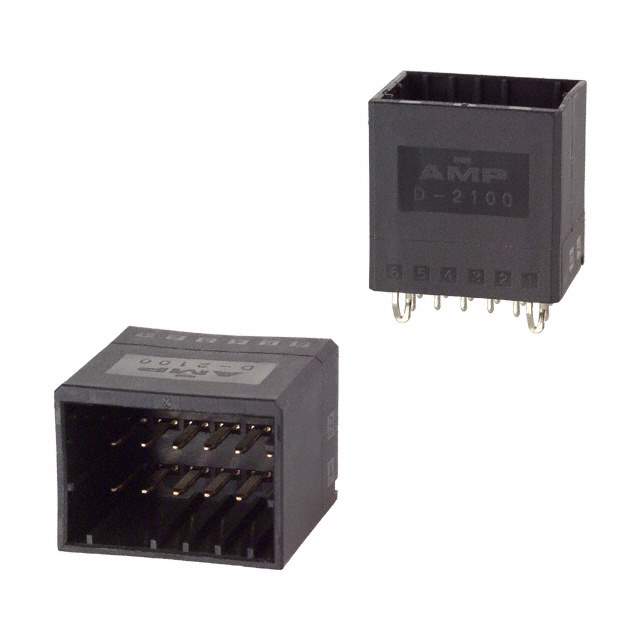

1318126-1 Real Image
Same model may have multiple batches, images only for reference.

1318126-1

Part No 1318126-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.5MM  /  Connector Header Through Hole 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-2100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.148" (3.75mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.700" (17.78mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 1318126
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 13181261,A29811,A29811-NDR,-1318126-1-SI,2266-1318126-1,-1318126-1-CSI
Standard Package 26
Win Source Part Number 1031408-1318126-1
Ultra Librarian 3D Model Ultra Librarian 1318126-1 CAD Model

Description

The TE Connectivity Dynamic D-2100 is a male pin header connector with a board lock feature.

  • Number of Positions: 12
  • Fastening Type: Detent Lock
  • Connector Type: Header
  • Contact Type: Tab
  • Positions Loaded: All
  • Number of Rows: Two
  • Termination: Solder
  • Voltage Rating: 250V
  • Shrouding: Shrouded with Four Walls
  • Insulation Color: Black
  • Pitch (Mating): 0.098 inches (2.50mm)
  • Row Spacing (Mating): 0.148 inches (3.75mm)
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 15.0 µin (0.38 µm)
  • Contact Finish (Post): Tin
  • Operating Temperature Range: -55°C to 105°C
  • Applications: General-Purpose and Industrial
