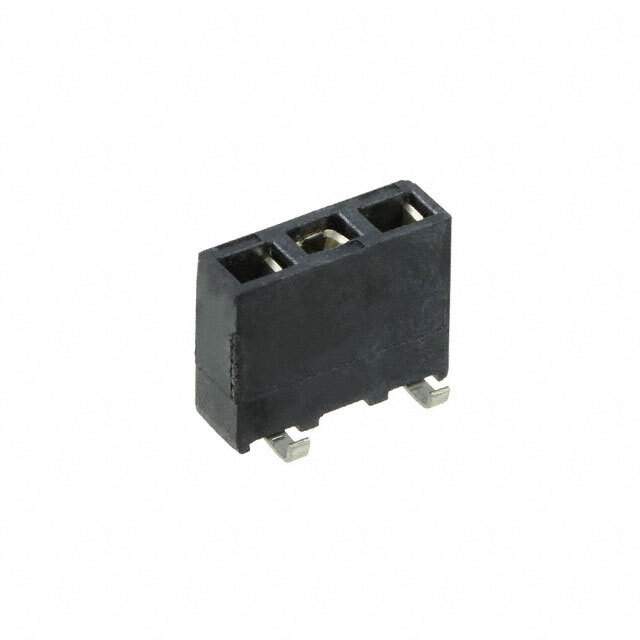

1241152-3

Part No 1241152-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 3POS VERT .100 GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 31.5μin (0.80μm)
Insulation Color Black
Insulation Height 0.244" (6.20mm)
Contact Finish - Post Tin
Features Pick and Place
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 058012-1241152-3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1241152-3 CAD Model

Description

1241152-3

The 1241152-3 is known for its versatility and robustness, making it a preferred choice for a wide range of industrial applications.

Features and Benefits:

  • Durable, weather-resistant design
  • High connectivity reliability
  • Easy to install and maintain
  • Compliant with global industry standards

Applications and Projects:

  • Industrial machinery
  • Construction equipment
  • Renewable energy systems
  • Safety and security systems

Its innovative design supports seamless integration into complex systems, ensuring operational excellence.
