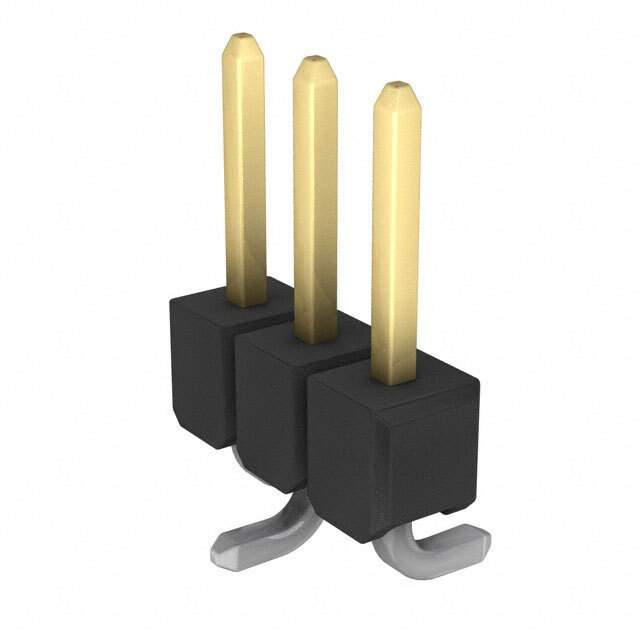

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating Flash
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Features Pick and Place
Insulation Color Black
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 1241150
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1241150-3-ND,A110955CT,A110955TR,-1241150-3-LSI,-1241150-3-SI,2266-1241150-3TR
Standard Package 500
Win Source Part Number 1031407-1241150-3
Ultra Librarian 3D Model Ultra Librarian 1241150-3 CAD Model

Description

The TE Connectivity AMP Connectors 1241150-3 is a male pin header connector with three positions.

  • Features: Pick and Place
  • Packaging: Tape and Reel or Cut Tape
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold or Gold-Palladium
  • Operating Temperature: -55°C to 105°C
