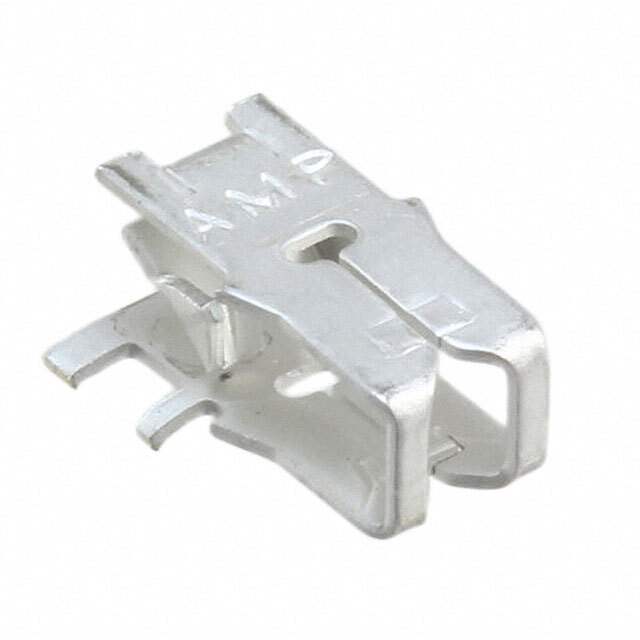

1217234-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

1217234-1

Part No 1217234-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN MAG TERM 28-31AWG IDC
Datasheet
1217234-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310307-1217234-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Magnetic Wire Connectors
Part Status Active
Style 300
Terminal Type Poke-In Terminal
Size 2
Termination IDC
Features Locking
Ultra Librarian 3D Model Ultra Librarian 1217234-1 CAD Model

Description

Poke-In, Lead Wire Size 20 – 18 AWG, Lead Wire Size .5 – .9 mm², . 23 – .32 mm Magnet Wire, MAG-MATE 300, Magnet Wire Terminals
