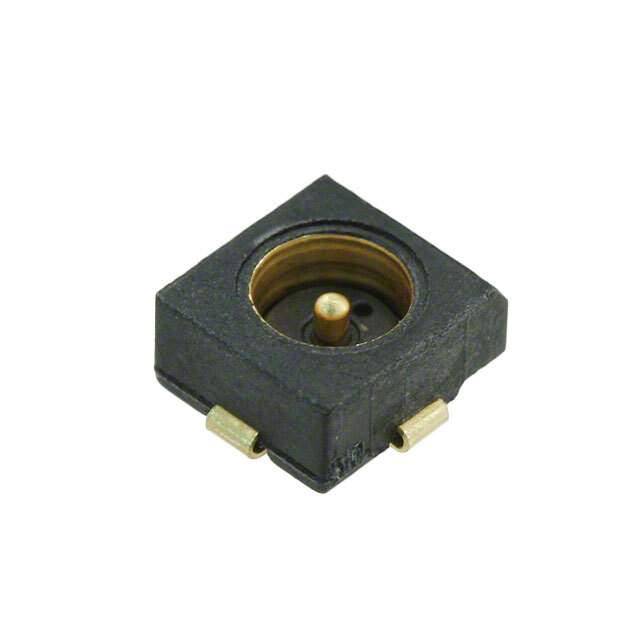

Part No 1055689-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN OSMT RCPT STR 50 OHM SMD / OSMT Connector Receptacle, Male Pin 50Ohm Surface Mount Solder, Microstrip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Connector Style OSMT
Connector Type Receptacle, Male Pin
Contact Termination Solder, Microstrip
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Center Contact Material Copper Alloy
Center Contact Plating Gold
Dielectric Material Polyphenylene Sulfide (PPS)
Temperature Range - Operating -40°C ~ 125°C
Voltage Rating 250 V
Mating Cycles 100
Base Product Number 1055
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 10556891,1055689-1-ND,A102064DKR,2266-1055689-1TR,-2367-5002-54-SI,A102064CT,A102064TR,-1055689-1-SI,-2367-5002-54-SI-ND
Standard Package 3,000
Win Source Part Number 1040711-1055689-1
Ultra Librarian 3D Model Ultra Librarian 1055689-1 CAD Model

Description

This male pin receptacle connector is perfect for coaxial connections in electronic devices.

  • Fastening Type: Snap-on
  • Connector Style: OSMT
  • Voltage Rating: 250 V
  • Frequency Range: Up to 6 GHz
  • Shielded: Yes, with solder termination
  • Impedance: 50 Ohm
  • Dielectric Material: Polyphenylene sulfide (PPS)
  • Center Contact Material: Copper alloy, plated with gold
  • Temperature Range: -40°C to 125°C
  • Package: Tape and reel
  • Standard Package: 3,000
  • Alternative Parts: 1055688-1, 1055692-1, and 2367-5001-54
