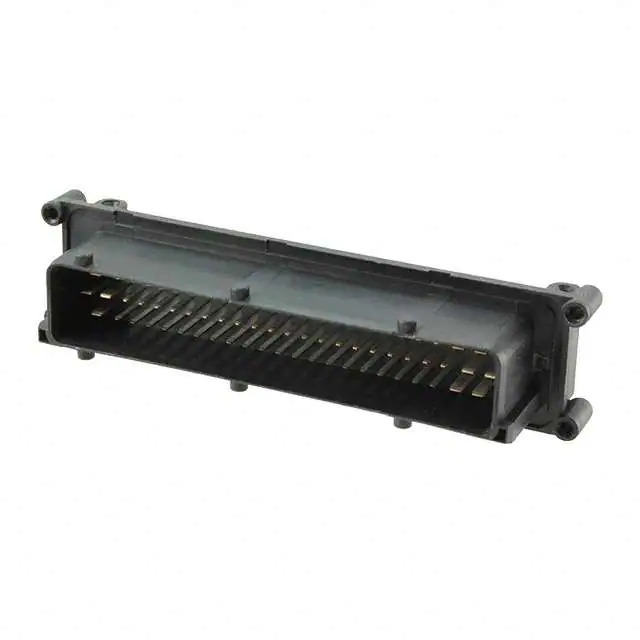

1-963484-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1-963484-1

Part No 1-963484-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 70POS 5MM / Connector Header Through Hole, Right Angle 70 position 0.197" (5.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Junior Power Timer
Package Tray
Product Status Active
Connector Type Plug
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 70
Number of Rows 3
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Lever Lock
Contact Length - Mating -
Contact Length - Post 0.122" (3.10mm)
Overall Contact Length -
Insulation Height 1.280" (32.50mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Ingress Protection -
Material Flammability Rating -
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose
Base Product Number 963484
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1353650-1-963484-1
Ultra Librarian 3D Model Ultra Librarian 1-963484-1 CAD Model

Description

The TE Connectivity AMP Connectors Junior Power Timer series is a header connector with male pins.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product: Junior Power Timer Series
  • Mounting Type: Through-Hole, Right-Angle
  • Features: Mounting Flange
  • Positions: 70
  • Rows: 3
  • Pitch: 0.197" (5.00mm)
  • Applications: Automotive and General-Purpose
  • Packaging: Tray
