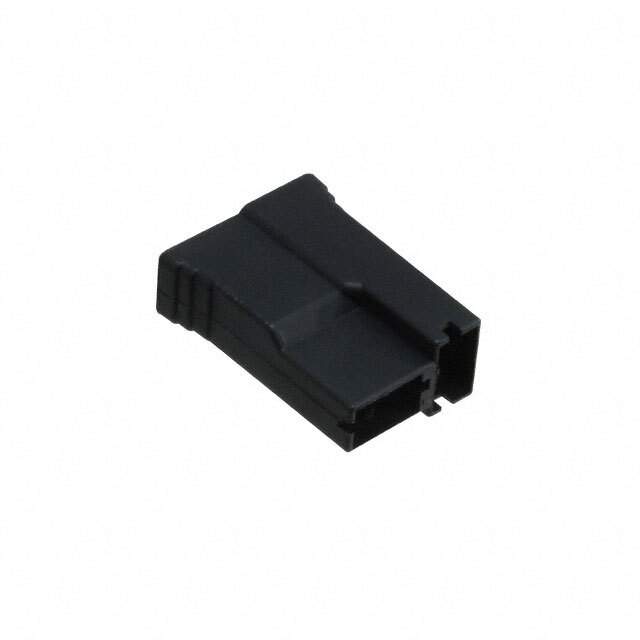

1-926522-1 Real Image
Same model may have multiple batches, images only for reference.

1-926522-1

Part No 1-926522-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RCPT HSG 0.25 2POS BLACK
Datasheet
1-926522-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Mark I
Style Housing
Terminal Type Quick Connect, Disconnect
Gender Female, Receptacle
Terminal Size 0.250" (6.35mm)
Number of Positions 2
Stacking Direction Perpendicular
For Use With/Related Products 0.250" (6.35mm) Quick Connects
Mounting Free Hanging (In-Line)
Color Black
Material Polyamide (PA66), Nylon 6/6
Note Contacts Not Included
Win Source Part Number 766477-1-926522-1
Popularity Medium
Supply and Demand Status Limited
Family Name 926522
Introduction Date January 29, 2006
ECCN EAR99
Country of Origin China, Germany, India, Italy, Switzerland, United Kingdom
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-926522-1 CAD Model

Description

The TE Connectivity AMP Connectors 766477-1-926522-1 is a black two-position Mark I housing connector manufactured by TE Connectivity AMP Connectors.

  • Quick Connects: 0.250 inches (6.35mm)
  • Material: Polyamide (PA66), Nylon 6/6
  • Stacking Direction: Perpendicular
  • Terminal Type: Quick Connect Disconnect
  • Terminal Size: 0.250 inches (6.35mm)
  • Gender: Female, Receptacle
  • Mounting: Free Hanging (in-line)
  • Contacts Included: No
  • RoHS Compliance: Yes
  • Popularity: Medium
  • Supply/Demand Status: Limited
  • EOL Date: 2026 (estimated)
