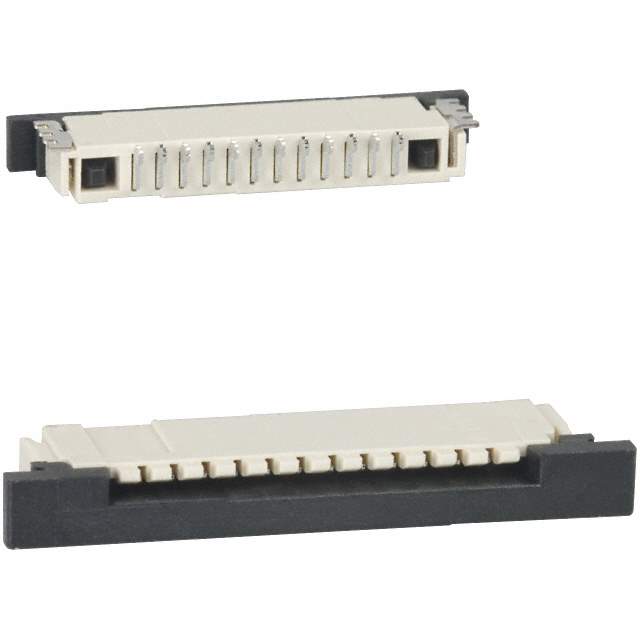

The TE Connectivity AMP Connectors 84953-2 is a connector with a Win Source Part Number of 804567-1.

• Packaging: Reel
• Positions: 12
• Pitch: 0.039" (1.00mm)
• Mounting Style: Surface Mount, Right Angle
• Features: Solder Retention, Zero Insertion Force (ZIF)
• Termination: Solder
• Contact Finish: Tin
• Contact Finish Thickness: 78.7μin (2.00μm)
• Contact Material: Phosphor Bronze
• Voltage Rating: 200V
• Height Above Board: 0.101" (2.56mm)
• Flat Flex Type: FPC
• Connector/Contact Type: Contacts, Top
• FFC, FCB Thickness: 0.30mm
• Locking Feature: Slide Lock
• Cable End Type: Straight
• Housing Material: Liquid Crystal Polymer (LCP), Glass-Filled
• Actuator Material: Polyamide (PA), Nylon, Glass-Filled
• Material Flammability Rating: UL94 V-0
• Housing Color: Natural
• Mating Cycles: -
• Operating Temperature Range: -40°C to 85°C
• Actuator Color: Black
• Popularity: Medium
• Manufacturer Pack Quantity: 1,200
• MSL Level: 1 (unlimited)
• Current Rating (Amps): 1A
