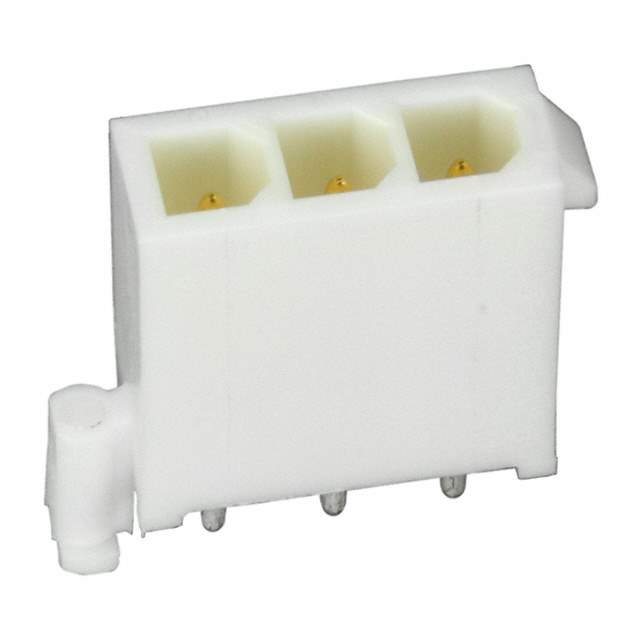

1-770170-1 Real Image
Same model may have multiple batches, images only for reference.

1-770170-1

Part No 1-770170-1
Manufacturer TE Connectivity
Catalog Barrel - Power Connectors
Description CONN HEADER VERT 3POS 4.14MM  /  Connector Header Through Hole 3 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770170
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 17701701,A33331,2266-1-770170-1
Standard Package 200
Win Source Part Number 1035101-1-770170-1
Ultra Librarian 3D Model Ultra Librarian 1-770170-1 CAD Model

Description

This electronic component is a Mini-Universal MATE-N-LOK series male pin header.

  • Win Source Part Number: 1035101-1-770170-1
  • Positions: 3
  • Positions Loaded: All
  • Connector Type: Header
  • Contact Type: Male Pin
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Package: Bulk
  • Contact Material: Brass
  • Voltage Rating: 600VAC
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: White
  • Pitch for Mating: 0.163" (4.14mm)
  • Contact Finish for Mating: Gold
  • Contact Finish Thickness for Mating: 30.0μin (0.76μm)
  • Contact Finish for Post: Tin
  • Contact Finish Thickness for Post: 150.0μin (3.81μm)
  • Mounting Type: Through Hole
  • Shrouding: Shrouded - 4 Wall
  • Contact Length for Post: 0.175" (4.45mm)
  • Insulation Height: 0.531" (13.50mm)
  • Temperature Range for Operating: -20°C to 105°C
  • Alternative Parts (Cross-Reference): DBM5W5PD, 39-30-2031, 39-30-1039, 39-30-3036, 1-521382-3, 1586532-2, 1-1123723-31-770170-1, and 1-770170-1
  • MSL Level: 1 (Unlimited)
  • Current Rating: Varies by Wire Gauge
