Same model may have multiple batches, images only for reference.

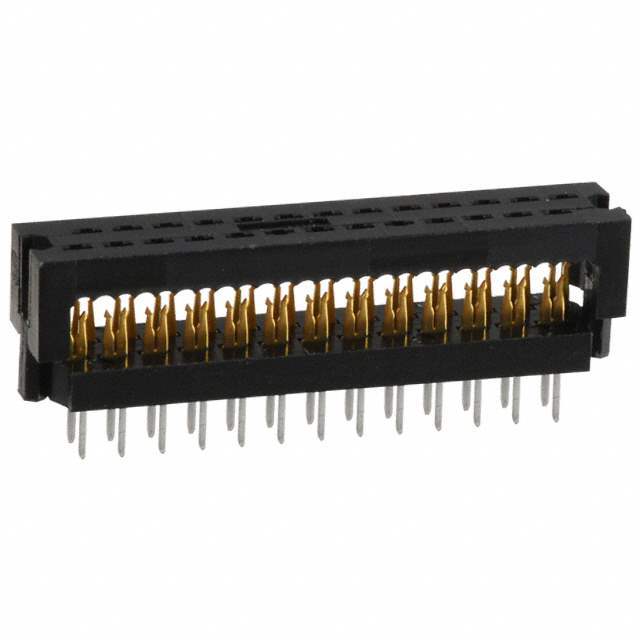

1-746610-9

Name: 1-746610-9
Brand: TE Connectivity
SKU: WS1202076
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-746610-9
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN DIP HDR IDC 40POS VERT
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1202076-1-746610-9
Manufacturer	TE Connectivity AMP Connectors
Category	Connectors, Interconnects -Rectangular Connectors- Board In, Direct Wire to Board
Series	AMP-Latch
Package	Bulk
Product Status	Active
Connector Type	Ribbon Cable, DIP Header
Number of Positions	40
Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
Number of Rows	2
Ultra Librarian 3D Model	Ultra Librarian 1-746610-9 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors AMP-Latch series is a versatile rectangular connector designed for board-to-board and wire-to-board connections.

Positions: 40
Row Design: Dual-Row
Connectors Supported: Ribbon Cable and DIP Header
Package Option: Bulk
Cable Pitch: 0.050" (1.27mm)
Board-Side Pitch: 0.100" (2.54mm)
Product Status: Active
