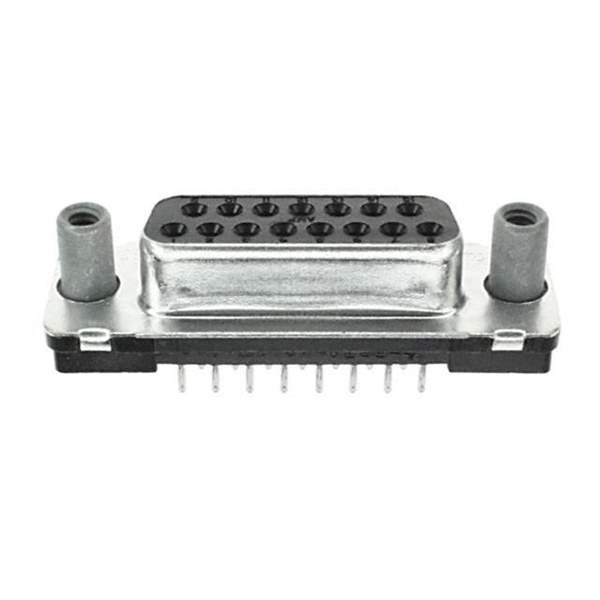

1-5747299-4 Real Image
Same model may have multiple batches, images only for reference.

1-5747299-4

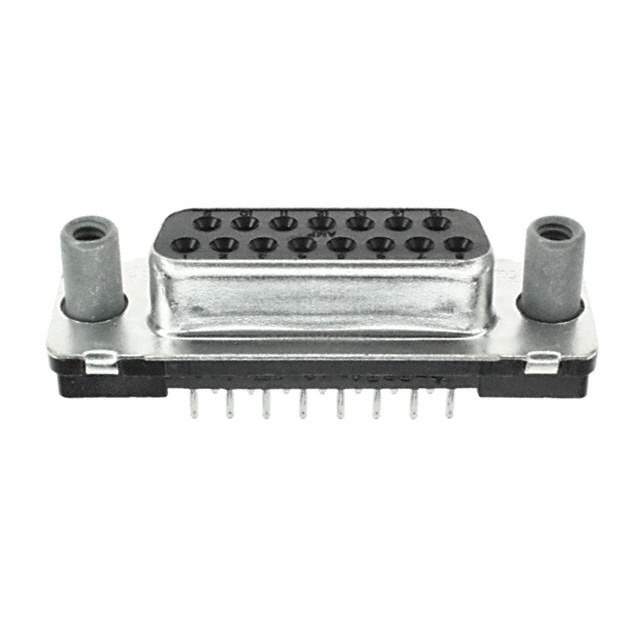

Part No 1-5747299-4
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS VERT SLDR / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747299
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 157472994,-1-5747299-4-SI,2266-1-5747299-4,A34093
Standard Package 13
Win Source Part Number 1333225-1-5747299-4
Ultra Librarian 3D Model Ultra Librarian 1-5747299-4 CAD Model

Description

The electronic component with Id 1146682 is a connector assembly manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1333225-1-5747299-4
  • Connector Type: Receptacle, female sockets
  • Positions: 15
  • Color: Black
  • Contact Type: Signal
  • Rows: 2
  • Termination: Solder
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Connector Style: D-Sub
  • Voltage Rating: 125V
  • Temperature Range: -55°C to 105°C
  • RoHS Compliant: Yes
