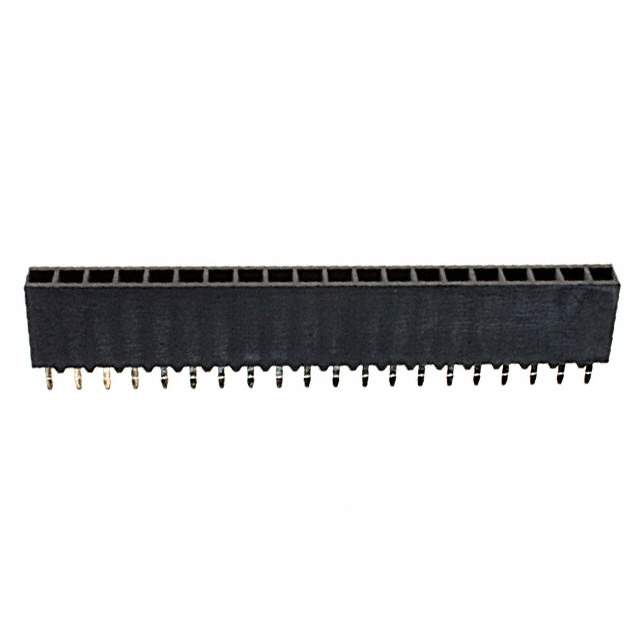

Part No 1-534237-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.1 GOLD PCB / 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.340" (8.64mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Contact Finish - Post Tin-Lead
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534237
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -650-1027-01-SI-ND,A26428,Q6927697,-650-1027-01-SI,2266-1-534237-8,15342378,-1-534237-8-SI
Standard Package 11
Win Source Part Number 1332099-1-534237-8
Ultra Librarian 3D Model Ultra Librarian 1-534237-8 CAD Model

Description

TE Connectivity AMP Connectors presents a 20-position receptacle connector with a push-pull fastening type.

  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 30.0µin (0.76µm)
  • Contact Finish Thickness (Post): 150.0µin (3.81µm)
  • Mounting Type: Through Hole
  • Pitch-Mating: 0.100" (2.54mm)
  • Insulation Material: Polyester, Glass-Filled
  • Material Flammability: -
  • Application: Board-to-Board or Cable
  • Temperature Range: -65°C to 125°C
  • Packaging: Tube
  • Standard Package: 11
