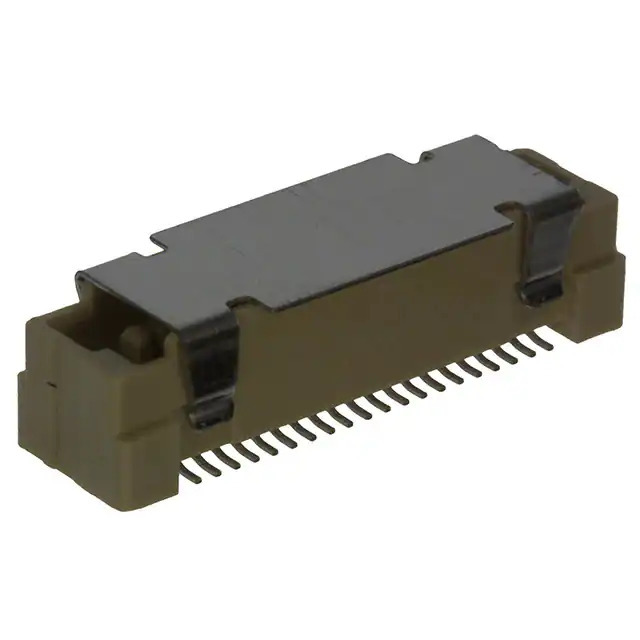

1-5177986-1

Name: 1-5177986-1
Brand: TE Connectivity
SKU: 1364514
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-5177986-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG 40POS SMD GOLD / 40 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	TE Connectivity AMP Connectors
Series	Free Height (FH)
Package	Tape & Reel (TR)
Product Status	Active
Connector Type	Plug, Center Strip Contacts
Number of Positions	40
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	6mm, 10mm, 14mm, 18mm
Height Above Board	0.230" (5.85mm)
Base Product Number	5177986
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364514-1-5177986-1
Ultra Librarian 3D Model	Ultra Librarian 1-5177986-1 CAD Model

Description

The TE Connectivity AMP Connectors 1364514-1-5177986-1 is a rectangular connector array designed for board-to-board connections.

Connector Type: Board-to-Board
Connector Gender: Plug
Contact Type: Center Strip
Positions: 40
Rows: 2
Mounting Type: Surface Mount
Pitch: 0.031 inches (0.80mm)
Height Above Board: 0.230 inches (5.85mm)
Mated Stacking Heights: 6mm, 10mm, 14mm, 18mm
Contact Finish: Gold
Contact Finish Thickness: 8.00μin (0.203μm)
