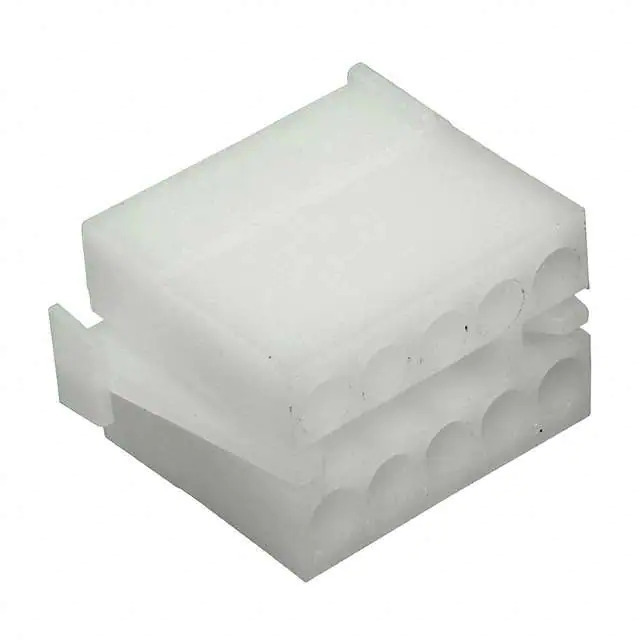

Same model may have multiple batches, images only for reference.

1-480285-0

Name: 1-480285-0
Brand: TE Connectivity
SKU: 1365927
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-480285-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 10POS 4.95MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	Commercial MATE-N-LOK
Package	Bulk
Product Status	Active
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	10
Pitch	0.195" (4.95mm)
Number of Rows	2
Row Spacing	0.360" (9.14mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-55°C ~ 105°C
Note	Contacts Not Included
Base Product Number	480285
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365927-1-480285-0
Ultra Librarian 3D Model	Ultra Librarian 1-480285-0 CAD Model

Description

The TE Connectivity AMP Connectors Commercial MATE-N-LOK series is a range of rectangular connector housings designed for free hanging applications.

Temperature Range: -55°C to 105°C
Contact Termination: Crimp
Color: Natural
Connector Type: Plug
Contact Gender: Female Socket
Number of Positions: 10
Number of Rows: 2
Fastening Type: Latch Lock
Pitch: 0.195" (4.95mm)
Row Spacing: 0.360" (9.14mm)
Product Status: Active
