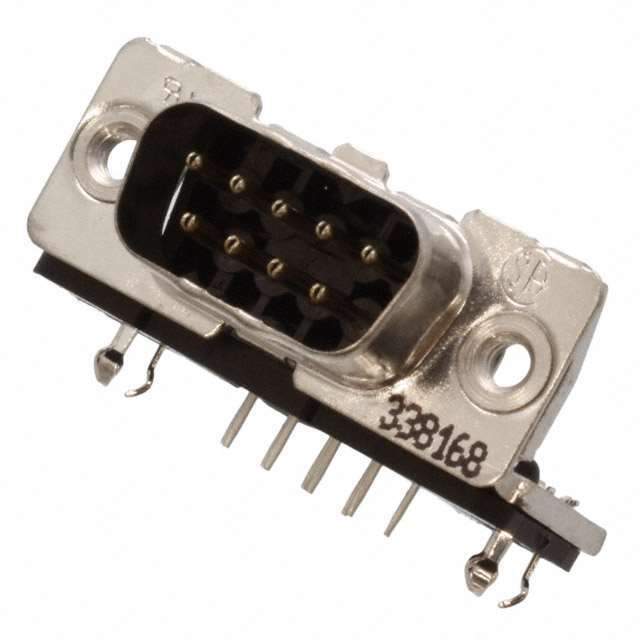

1-338168-2 Real Image
Same model may have multiple batches, images only for reference.

1-338168-2

Part No 1-338168-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.406" (10.30mm)
Features Board Lock, Grounding Indents
Voltage Rating 125V
Color Black
Dielectric Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 338168
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1-338168-2-ND,-1-338168-2-SI,A104913,13381682
Standard Package 55
Win Source Part Number 1333199-1-338168-2
Ultra Librarian 3D Model Ultra Librarian 1-338168-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333199-1-338168-2 D-Sub Connector Assembly is a 9-position, male plug connector with grounding indents and board lock features.

  • Positions: 9
  • Connector Type: D-Sub
  • Mounting Style: Through-Hole, Right-Angle
  • Grounding Indents: Yes
  • Board Lock: Yes
  • Color: Black
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Termination: Solder
  • Contact Finish: Gold
  • Shell Material: Steel
  • Shell Finish: Tin Plated
  • Dielectric Material: Polyester, Glass-Filled
  • Shell Size and Connector Layout: 1 (DE, E)
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • RoHS Compliant: Yes
  • Housing/Shell Flange: Yes
  • Contact Type: Signal
