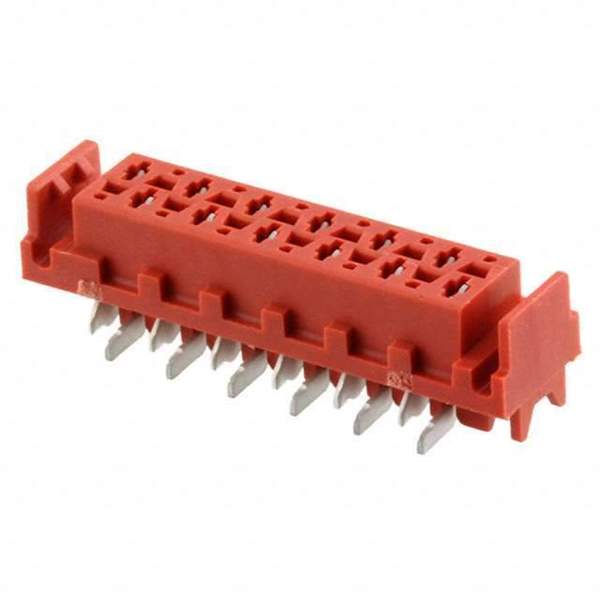

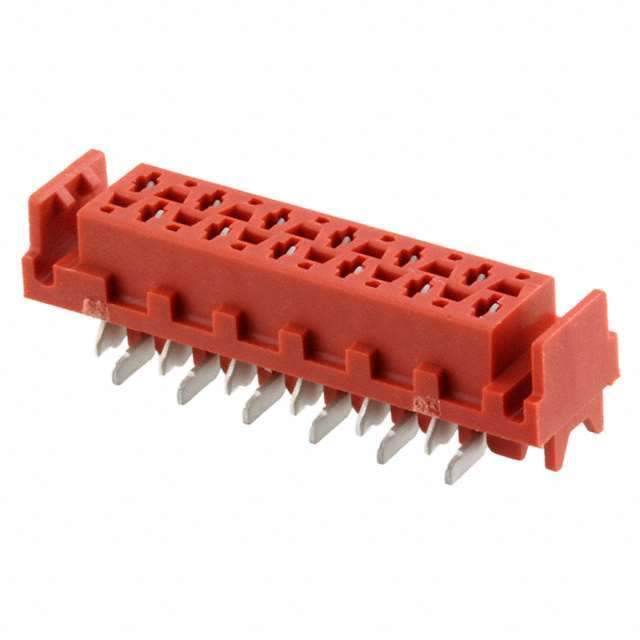

1-338069-2 Real Image
Same model may have multiple batches, images only for reference.

1-338069-2

Part No 1-338069-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.1 TIN SMD / 12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Surface Mount
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.209" (5.30mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 338069
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A110959CT,1-338069-2-ND,2266-1-338069-2TR,A110959TR,-1-338069-2-LSI,-1-338069-2-SI
Standard Package 900
Win Source Part Number 1333532-1-338069-2
Ultra Librarian 3D Model Ultra Librarian 1-338069-2 CAD Model

Description

The 338069-2 is a high-quality connector manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Rectangular Connectors, Headers, Receptacles, and Female Sockets
  • Color: Red
  • Style: Board to Board or Cable
  • Pitch-Mating: 0.100 inches
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Current Rating: Amps (unspecified)
  • RoHS3 Compliant: Yes
