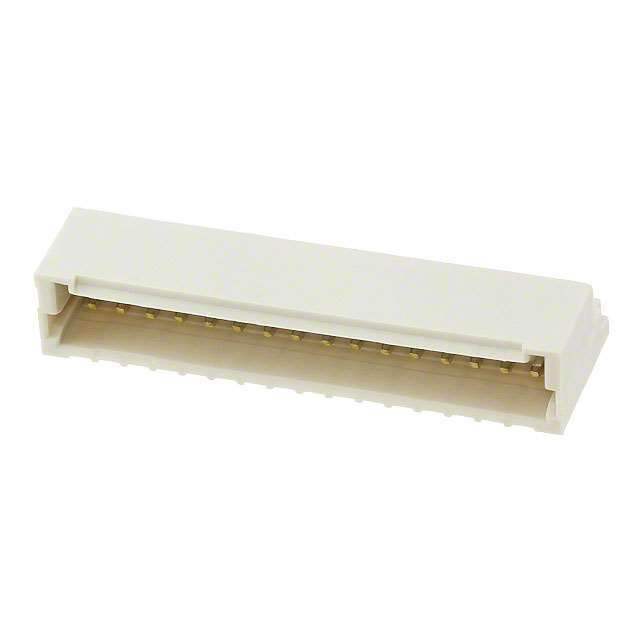

1-292206-6

Part No 1-292206-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 16POS R/A 1.5MM TIN
Datasheet
1-292206-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Mini CT
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Operating Temperature Range -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating Varies by Wire Gauge
Voltage Rating 50VAC
Applications General
Win Source Part Number 760348-1-292206-6
Popularity Medium
Supply and Demand Status Balance
Family Name 292206
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-292206-6 CAD Model

Description

The TE Connectivity AMP Connectors Mini CT series header connector is a reliable board-to-cable/wire connector designed for general applications.

  • Applications: General
  • Shrouded: 4-Wall
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Positions: 16
  • Loaded: Male Pins
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Contact Material: Brass
  • Contact Finish: Tin
  • Voltage Rating: 50VAC
  • Flammability Rating: UL94 V-0
  • Fastening Type: Detent Lock
  • Pitch-Mating: 0.059 inches (1.50mm)
  • Mating Contact Length: 0.094 inches (2.40mm)
  • Post Contact Length: 0.118 inches (3.00mm)
  • Insulation Height: 0.193 inches (4.90mm)
  • Insulation Color: Gray
  • Operating Temperature: -30°C to 105°C
