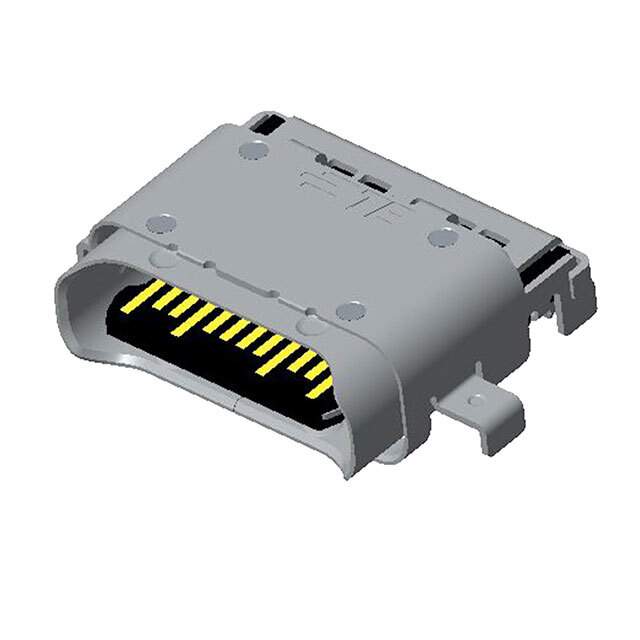

1-2295018-2

Name: 1-2295018-2
Brand: TE Connectivity
SKU: 1333953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1-2295018-2
Manufacturer	TE Connectivity
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB3.1 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Cutout, Surface Mount, Right Angle; Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors>USB, DVI, HDMI Connector Assemblies
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Receptacle
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting	Board Cutout, Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal, Mid Mount, Reverse
Termination	Solder
Features	Pick and Place
Temperature Range - Operating	-30°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.25A, 5A
Voltage - Rated	30V
Mating Cycles	10000
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	2295018
RoHS Status	RoHS Compliant
MSL Level	Not Applicable
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	2266-1-2295018-2TR,A124378TB-ND,A124378TB,A124378TR,A124378CT,-1-2295018-2-CSI
Standard Package	900
Win Source Part Number	1333953-1-2295018-2
Ultra Librarian 3D Model	Ultra Librarian 1-2295018-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333953-1-2295018-2 is a USB-C (USB TYPE-C) connector assembly used in various applications.

Contacts: 24
Type: Receptacle
Voltage Rated: 30V
Current Rating: 0.25A, 1.25A, 5A
Package Type: Reel - TR
Termination: Solder
Status: Balanced
Package: 900
Mounting Type: Board Cutout, Surface Mount, Right Angle; Through Hole
Ingress Protection and Shielding: Unspecified
Material Flammability Rating: UL94 V-0
Ports: 1
Operating Temperature Range: -30°C to 85°C
RoHS Compliant: Yes
