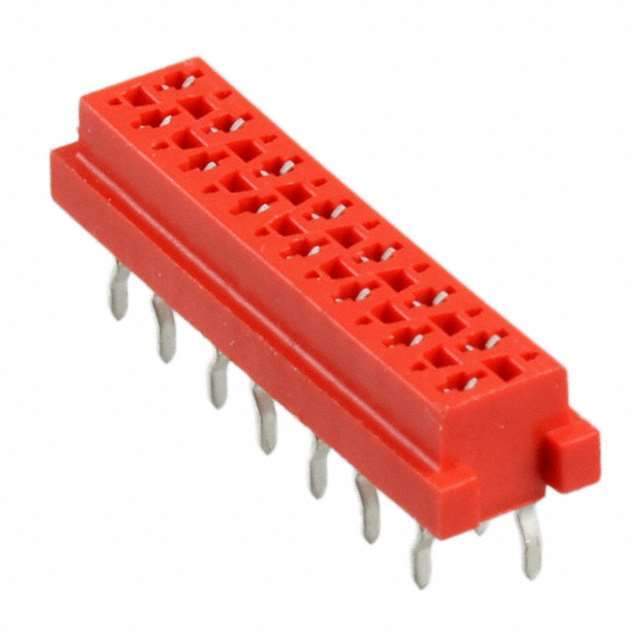

Same model may have multiple batches, images only for reference.

1-215079-4

Name: 1-215079-4
Brand: TE Connectivity
SKU: 538479
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-215079-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	MICRO MATCH FEMALE ON BOARD CONNECTOR \| CONN RCPT 14POS 0.1 TIN PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Cut Tape (CT)
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Phosphor Bronze
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1121167-1-215079-4
Manufacturer Homepage	www.macom.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1-215079-4 CAD Model

Description

The 1121167-1-215079-4 is a high-quality connector manufactured by TE Connectivity AMP Connectors.

Supply and Demand Status: limited, making it slightly difficult to obtain.
Suitable For: use in a variety of applications, including automotive and general purpose.
Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled.
Contact Material: Phosphor Bronze, making it a durable and reliable component for any electronic enthusiast or professional.
