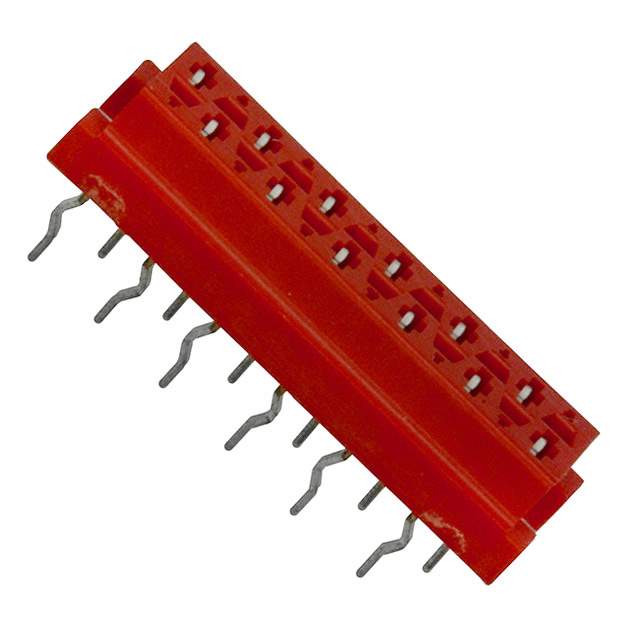

1-215079-2 Real Image
Same model may have multiple batches, images only for reference.

1-215079-2

Part No 1-215079-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN FMALE-ON-BRD 12POS VERT T/H
Datasheet
1-215079-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.157" (4.00mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Win Source Part Number 1001275-1-215079-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-215079-2 CAD Model

Description

The TE Connectivity AMP Connectors 1001275-1-215079-2 is a 12-position receptacle connector with forked contacts.

  • Positions: 12
  • Application: Board-to-Board or Cable-to-Board
  • Pitch-Mating: 2.54mm
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 100VDC
  • Operating Temperature: -40°C to 105°C
  • Mounting Technology: Through Hole
  • Termination: Kinked Pin Solder
