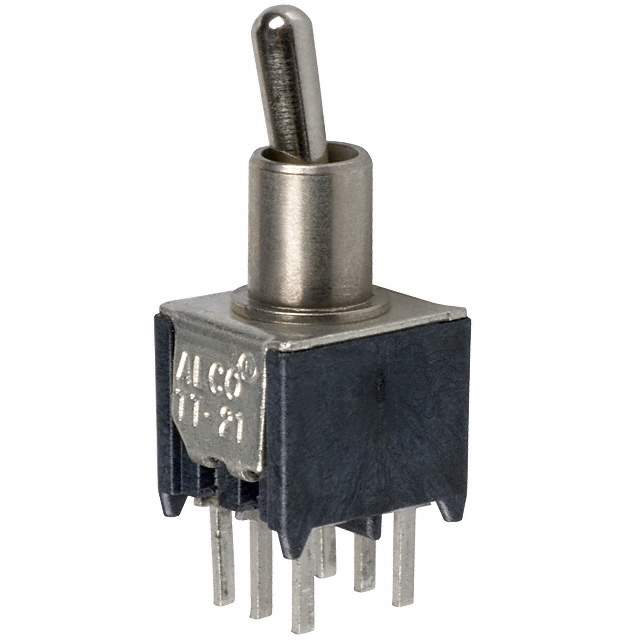

1-1825219-1 Real Image
Same model may have multiple batches, images only for reference.

1-1825219-1

Part No 1-1825219-1
Manufacturer TE Connectivity
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 0.4VA 20V / Toggle Switch DPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series TT
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 5.61mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Nickel Plated
Electrical Life 80,000 Cycles
Base Product Number 1825219
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1339542-1-1825219-1
Ultra Librarian 3D Model Ultra Librarian 1-1825219-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches TT series is a DPDT toggle switch with a PC pin termination style.

  • Switch Type: DPDT Toggle
  • Termination Style: PC Pin
  • Voltage Rating: 20V AC/DC
  • Panel Cutout Dimension: - inches
  • Actuator Type: Round
  • Actuator Length: 5.61mm
  • Illumination Type: Non-Illuminated
  • Mounting Type: Through Hole
  • Circuit Function: On-On
  • Electrical Life: 80,000 Cycles
  • Actuator Material: Brass, Nickel Plated
  • Operating Temperature: -30°C to 85°C
  • MSL Level: 1
  • HTSUS: 8536.50.9065
  • Other Part Number: 1825219
