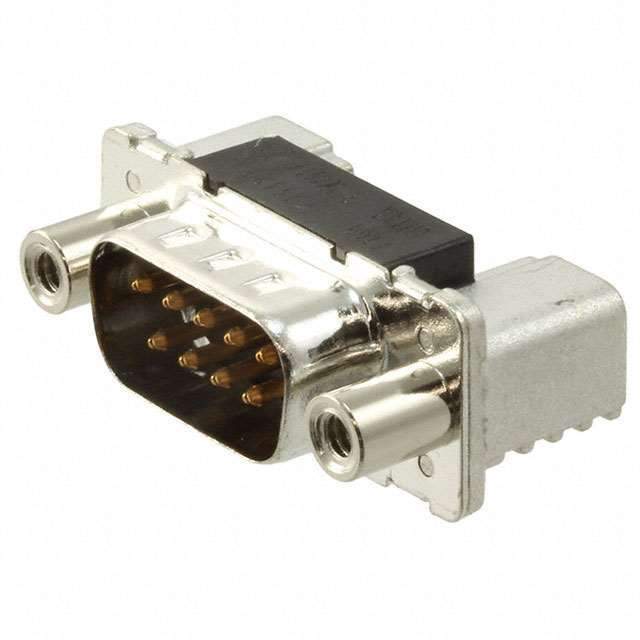

1-1740195-2 Real Image
Same model may have multiple batches, images only for reference.

1-1740195-2

Part No 1-1740195-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9P SMD R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Surface Mount, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 31.5µin (0.80µm)
Material Flammability Rating UL94 V-0
Features Board Guide
Color Black
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1740195
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A109023TR,-1-1740195-2-SI,117401952,A109023CT
Standard Package 450
Win Source Part Number 1333207-1-1740195-2
Ultra Librarian 3D Model Ultra Librarian 1-1740195-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333207-1-1740195-2 is a surface mount D-Sub connector assembly with 9 positions.

  • Mounting Type: Surface Mount
  • Positions: 9
  • Color: Black
  • Contact Type: Signal
  • Connector Type: Male Plug
  • Termination: Solder
  • Contact Finish Thickness: 31.5µin (0.80µm)
  • ECCN: EAR99
  • RoHS Compliant: Yes
  • Package: Reel
  • Standard Package: 450
  • Temperature Range: -55°C to 105°C
  • REACH: Unaffected
