Same model may have multiple batches, images only for reference.

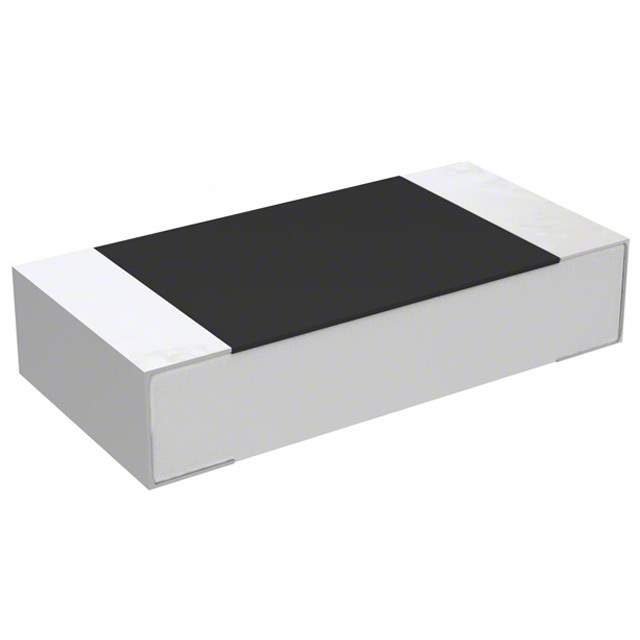

1-1614965-5 Real Image
Same model may have multiple batches, images only for reference.

1-1614965-5

Part No 1-1614965-5
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description Res Thin Film 1206 24K Ohm 0.1% 1/8W ±25ppm/°C Molded SMD SMD Paper T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 1206
Composition Thin Film
Contact Plating Tin
ELV Compliant
Max Operating Temperature 155 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 1206
Number of Resistors 1
Number of Terminations 2
Packaging Tape & Reel
Power Rating 125 mW
Radiation Hardening No
Resistance 24 kΩ
RoHS Compliant
Temperature Coefficient 25 ppm/°C
Termination Solder
Tolerance 0.1 %
Voltage Rating 150 V
Win Source Part Number 1110024-1-1614965-5
Categories Chip Resistor - Surface Mount
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1-1614965-5 CAD Model

Description

TE Connectivity's 1206 Chip Resistor is a high-quality surface mount resistor.

  • Resistance: 24 kΩ
  • Tolerance: 0.1%
  • Composition: Thin Film
  • Power Rating: 125 mW
  • Operating Temperature Range: -55 °C to 155 °C
  • Terminations: 2
  • Packaging: Tape and Reel
  • Contact Plating: Tin
  • Temperature Coefficient: 25 ppm/°C
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
