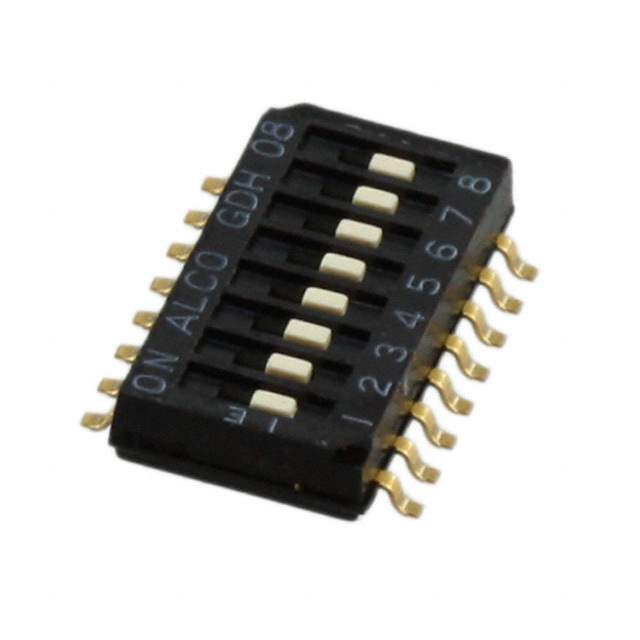

1-1571983-1 Real Image
Same model may have multiple batches, images only for reference.

1-1571983-1

Part No 1-1571983-1
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 26 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer TE Connectivity
Series GDH
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Family Name 1571983
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 450-1761-2, GDH08STR04, 450-1761-1, 2266-1-1571983-1, 450-1761-6, GDH08STR04-ND
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872707-1-1571983-1
Ultra Librarian 3D Model Ultra Librarian 1-1571983-1 CAD Model

Description

The TE Connectivity electronic component with Win Source Part Number 872707-1-1571983-1 belongs to the GDH series of dip switches.

  • Series: GDH
  • Type: DIP Switch
  • Mounting Type: Surface Mount
  • Switch Type: Slide
  • Pole and Throw: SPST
  • Actuator Current: 25mA
  • Actuator Voltage: 24VDC
  • Operating Temperature Range: -30°C ~ 85°C
  • Supply and Demand Status: Limited
  • Package: Reel
  • Quantity per Reel: 2000 switches
