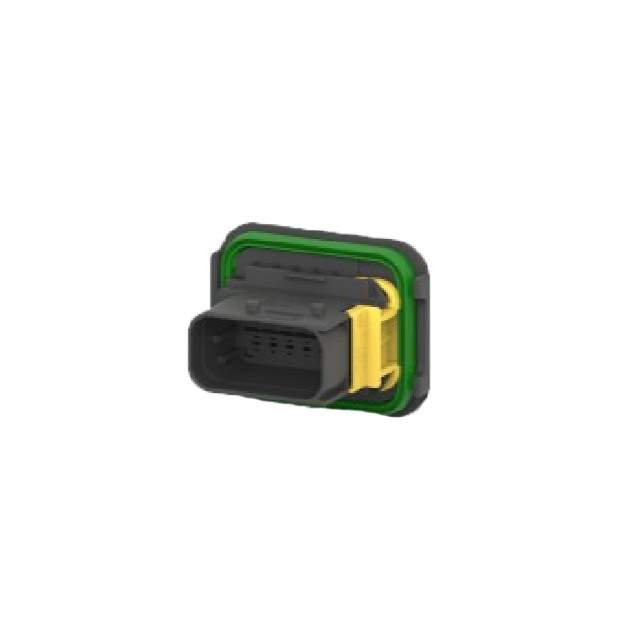

1-1564520-1 Real Image
Same model may have multiple batches, images only for reference.

1-1564520-1

Part No 1-1564520-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG HSG 12POS 4.00MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 18 Weeks
Features Rectangular Connectors - Housings
Manufacturer TE Connectivity
Series Heavy Duty Sealed Connector Series, MCP 1.5K
Package Bulk
Family Name 1564520
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Part Number 1-1564520-1-ND, 1734-1-1564520-1, -1-1564520-1-SI, -1-1564520-1-CSI
Quantity per package 220
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 847619-1-1564520-1
Ultra Librarian 3D Model Ultra Librarian 1-1564520-1 CAD Model

Description

The 847619-1-1564520-1 is a medium popularity product that falls under the category of connectors from TE Connectivity.

  • Product Category: Connectors
  • Series: Heavy Duty Sealed Connector Series, MCP 1.5K series
  • Connector Type: Rectangular Connectors - Housings
  • Package: Bulk
  • Quantity per Package: 220
  • Production Lead Time: 18 weeks
