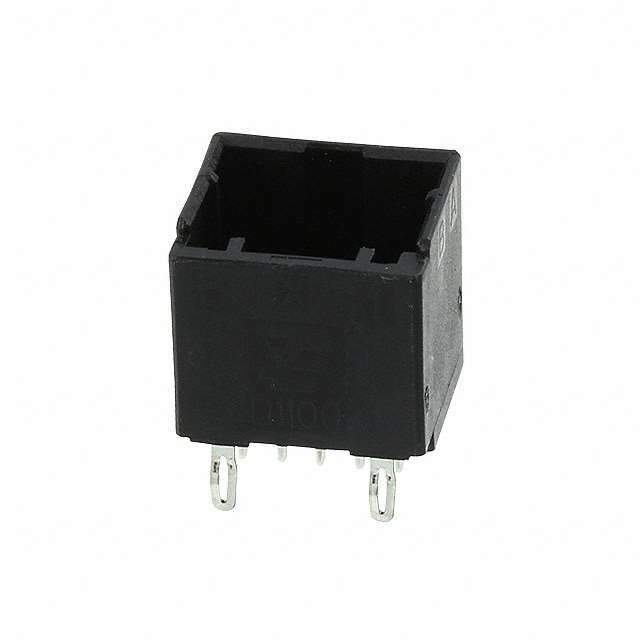

1-1554590-5 Real Image
Same model may have multiple batches, images only for reference.

1-1554590-5

Part No 1-1554590-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-1100
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.490" (12.44mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 125V
Applications General Purpose, Industrial
Base Product Number 1554590
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A120259,-1-1554590-5-SI,2266-1-1554590-5
Standard Package 35
Win Source Part Number 1034455-1-1554590-5
Ultra Librarian 3D Model Ultra Librarian 1-1554590-5 CAD Model

Description

The Dynamic D-1100 1034455-1-1554590-5 is a rectangular connector header male pin from TE Connectivity AMP Connectors.

  • Positions: 10
  • Application: General Purpose and Industrial
  • Connector Type: Header
  • Contact Type: Male Pin
  • Voltage Rating: 125V
  • Current Rating: 3A
  • Package: Tube
  • Mounting: Through Hole
  • Temperature Range: -55°C to 105°C
