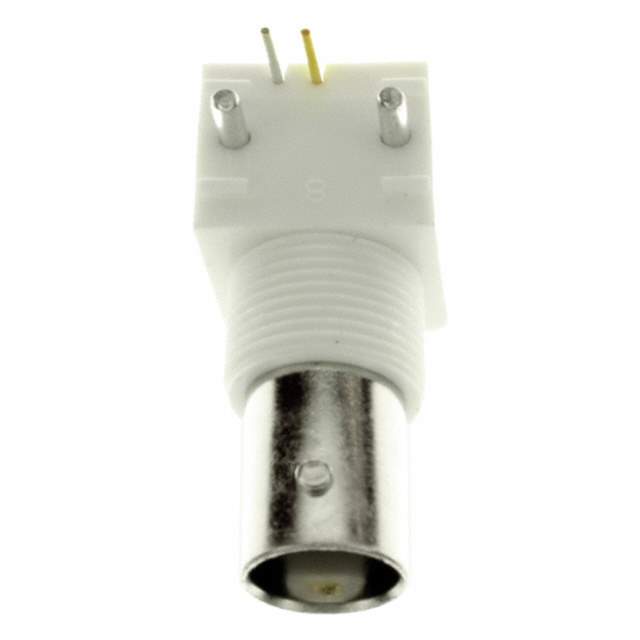

Same model may have multiple batches, images only for reference.

1-1337542-0

Name: 1-1337542-0
Brand: TE Connectivity
SKU: 1294126
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1337542-0
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	TE Connectivity AMP Connectors
Series	ZDC, Greenpar
Package	Bulk
Product Status	Obsolete
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Number of Ports	1
Features	Board Guide, Isolated
Housing Color	Silver, White
Center Contact Material	Brass
Body Material	Zinc Die Cast
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polyethylene (PE)
Temperature Range - Operating	-55°C ~ 85°C
Voltage Rating	500 V
Mating Cycles	500
Base Product Number	1337542
Other Names	113375420,-1-1337542-0-SI,A97552
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1294126-1-1337542-0
Ultra Librarian 3D Model	Ultra Librarian 1-1337542-0 CAD Model

Alternative Products

Description

The ZDC Greenpar series BNC female jack connector is a solder type coaxial connector that comes with an isolated board guide.

Connector Type: BNC female jack
Termination: Solder
Feature: Isolated board guide
Fastening Type: Bayonet lock
Mounting: Bulkhead-front side nut
Color: Silver-white
Impedance: 50Ohm
Frequency Range: 4 GHz
Body Finish: Nickel
Temperature Range: -55°C to 85°C
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.4010
Manufacturer: TE Connectivity AMP Connectors
Base Product Number: 1337542
Status: Obsolete
Also Known As: 113375420, -1-1337542-0-SI, and A97552
