Same model may have multiple batches, images only for reference.

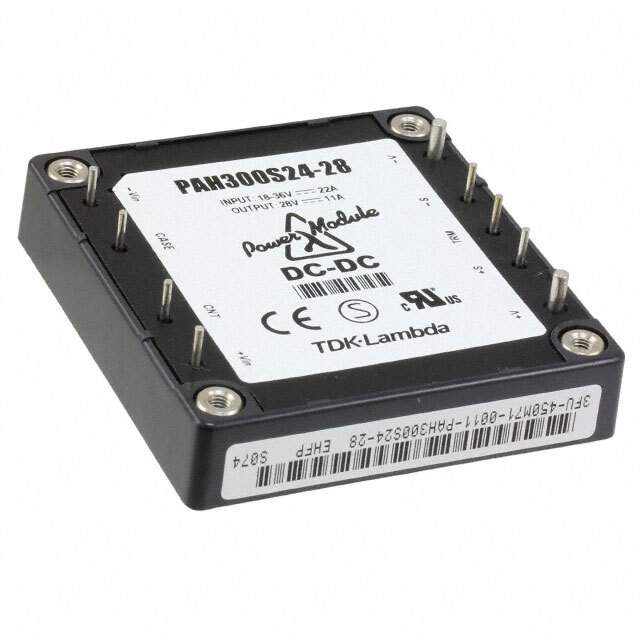

PAH300S24-28 Real Image
Same model may have multiple batches, images only for reference.

PAH300S24-28

Part No PAH300S24-28
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V 300W / Isolated Module DC DC Converter 1 Output 28V 11A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer TDK-Lambda Americas Inc
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 28V
Current - Output (Max) 11A
Power (Watts) 300 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 88%
Mounting Through Hole
Case / Package 9-DIP Module, 1/2 Brick
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features Enable, Active Low
Base Product Number PAH300
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 285-PAH300S24-28,PAH300S2428-ND,285-2444-ND,285-2444,PAH300S2428
Standard Package 1
Win Source Part Number 1335282-PAH300S24-28
Ultra Librarian 3D Model Ultra Librarian PAH300S24-28 CAD Model

Description

The TDK-Lambda Americas Inc 1335282-PAH300S24-28 is a 300W isolated module DC-DC converter.

  • Power: 300W
  • Mounting: through-hole
  • Case: 9-DIP module 1/2 brick
  • Number of Outputs: 1
  • Output Voltage: 28V
  • Maximum Output Current: 11A
  • Input Voltage: 18V to 36V
  • Efficiency: 88%
  • Remote On/Off: feature
  • OCP: OCP
  • OVP: OVP
  • Voltage Isolation: 1.5 kV
  • ROHS Compliance: ROHS compliant
  • HTSUS Code: 8504.40.9580
