Same model may have multiple batches, images only for reference.

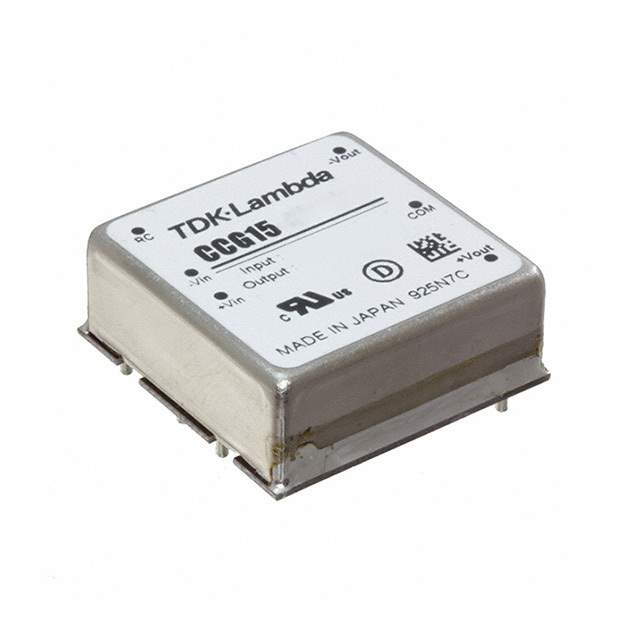

CCG15-24-12S Real Image
Same model may have multiple batches, images only for reference.

CCG15-24-12S

Part No CCG15-24-12S
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 15W / Isolated Module DC DC Converter 1 Output 12V 1.3A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CCG15 (15W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 1.3A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number CCG15
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1348610-CCG15-24-12S
Ultra Librarian 3D Model Ultra Librarian CCG15-24-12S CAD Model

Description

The CCG15-24-12S DC DC Converter is a 15W isolated module that features remote on/off, OCP, and OVP.

  • Power: 15W
  • Features: isolated, remote on/off, OCP, and OVP
  • Size: 1.00" L x 1.00" W x 0.39" H
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Current Output: 1.3A
  • Voltage Input: 9V to 36V
  • Efficiency: 88%
  • Mounting Type: through-hole
  • Package/Case: 6-DIP module
  • Operating Temperature: -40°C to 85°C
