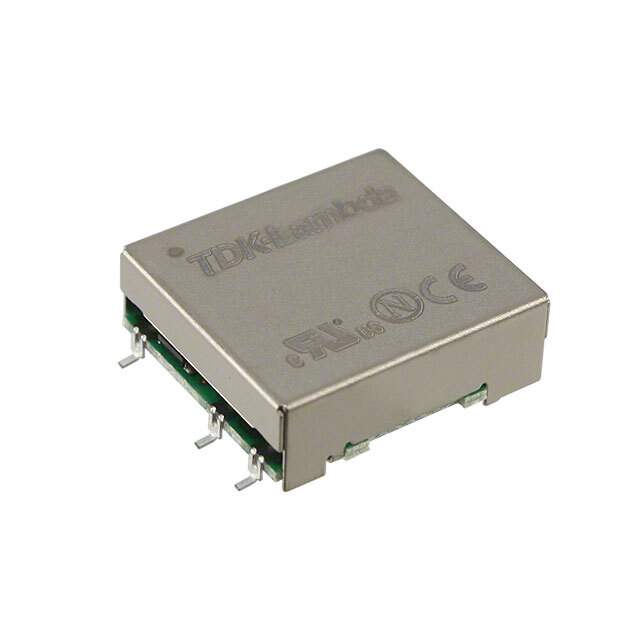

Same model may have multiple batches, images only for reference.

CC6-1205SR-E

Name: CC6-1205SR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1335154
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CC6-1205SR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 6W / Isolated Module DC DC Converter 1 Output 5V 1.2A 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	TDK-Lambda Americas Inc
Packaging	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	1.2A
Power (Watts)	6 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Surface Mount
Case / Package	7-SMD Module
Size / Dimension	0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC6-1205
RoHS Status	RoHS Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	CC61205SRE,445-2487
Standard Package	10
Win Source Part Number	1335154-CC6-1205SR-E
Ultra Librarian 3D Model	Ultra Librarian CC6-1205SR-E CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc CC6-1205SR-E isolated module is a surface-mountable DC-DC converter that provides a single 5V output with a maximum output current of 1.2A and a power rating of 6W.

Output Voltage: 5V
Output Current (Max): 1.2A
Power: 6W
Input Voltage: 9V to 18V
Application: ITE (Commercial)
Package: 7-SMD Module
Control Feature: Enable, Active Low
Voltage Isolation: 500V
Temperature Range: -40°C to 85°C
ROHS Compliant: Yes
Package Type: Tray
