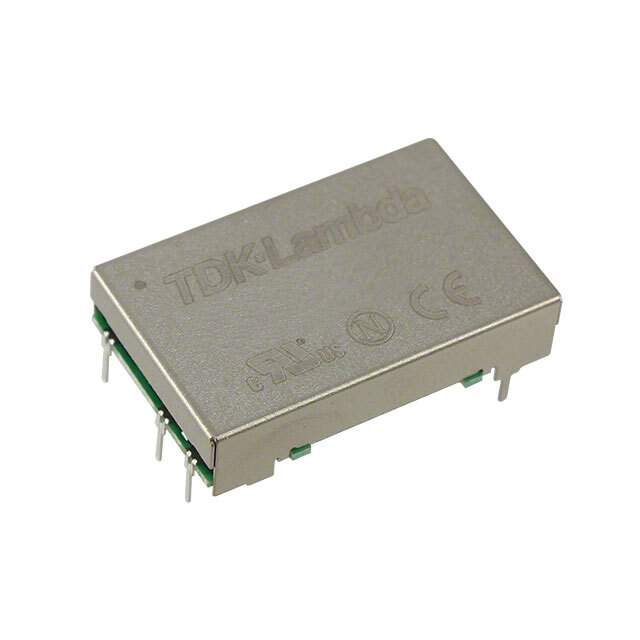

Same model may have multiple batches, images only for reference.

CC10-2403SF-E

Name: CC10-2403SF-E
Brand: TDK-Lambda Americas Inc.
SKU: 1351535
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC10-2403SF-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 10W / Isolated Module DC DC Converter 1 Output 3.3V 2.5A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (10W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	2.5A
Power (Watts)	10 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Control Features	Enable, Active Low
Base Product Number	CC10-2403
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1351535-CC10-2403SF-E
Ultra Librarian 3D Model	Ultra Librarian CC10-2403SF-E CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc CC-E (10W) series isolated module DC-DC converter is a power supply board mount converter.

Series: CC-E
Application: ITE (Commercial)
Control Features: Active Low
Mounting Type: Through-Hole
Size: 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Voltage Isolation: 500 V
Outputs: 1
Maximum Output Current: 2.5A
Input Voltage Range: 18V to 36V
Output Voltage: 3.3V
Package/Case: 7-DIP module
Operating Temperature: -40°C to 85°C
