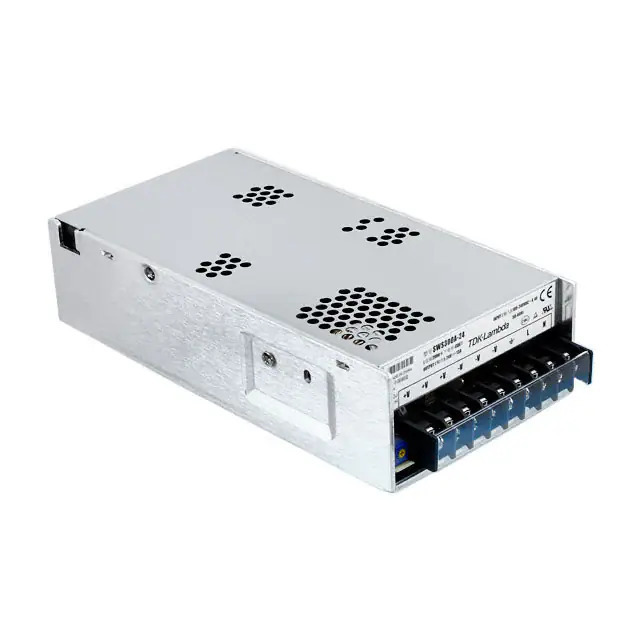

SWS300A-36 TDK-Lambda Americas Inc.
Same model may have multiple batches, images only for reference.

SWS300A-36

Part No SWS300A-36
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 36V 300W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series SWS300A (300W)
Package Bulk
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 36V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Voltage - Output 6 -
Current - Output 1 8.8 A
Power (Watts) 300W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 87%
Temperature Range - Operating -20°C ~ 74°C (With Derating)
Features Adjustable Output, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm)
Approval Agency CE, cURus, TUV
Minimum Load Required -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1380015-SWS300A-36
Ultra Librarian 3D Model Ultra Librarian SWS300A-36 CAD Model

Description

The SWS300A-36 is an AC/DC converter from the SWS300A series by TDK-Lambda Americas Inc.

  • Type: Enclosed
  • Power (Watts): 300W
  • Voltage - Input: 85 ~ 265 VAC
  • Voltage - Output: 36V
  • Current - Output: 8.8A
  • Mounting Type: Chassis Mount
  • Packaging: Bulk
  • Features: Adjustable Output, Power Factor Correction (PFC), Universal Input
  • Applications: ITE (Commercial)
  • Operating Temperature: -20°C ~ 74°C (With Derating)
  • Voltage - Isolation: 3kV
  • Approval Agency: CE, cURus, TUV
  • Size / Dimension: 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm)
  • Series: SWS300A
  • Lifecycle Status: Obsolete
