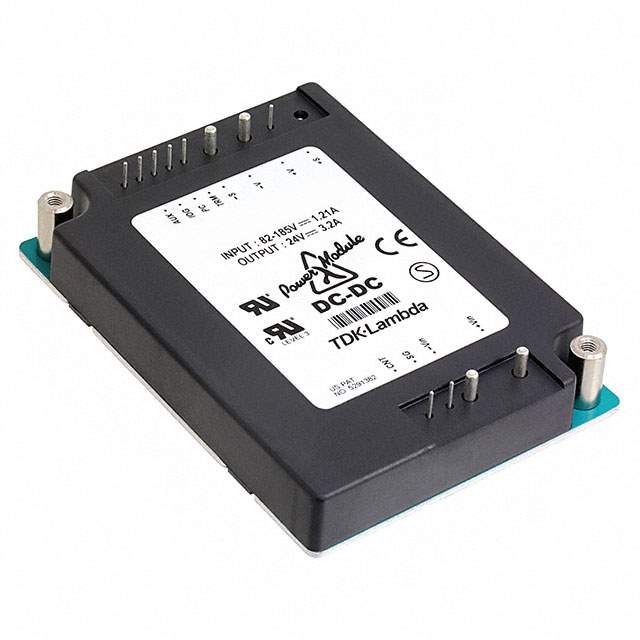

Same model may have multiple batches, images only for reference.

PH75S48-15

Name: PH75S48-15
Brand: TDK-Lambda Americas Inc.
SKU: 791759
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH75S48-15
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 15V 75W 5A / Module DC-DC 48VIN 1-OUT 15V 5A 75W 6-Pin
Datasheet	PH75S48-15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	TDK-Lambda Americas Inc.
Series	PH-S
Packaging	Bulk
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	36V
Voltage Input MAX	76V
Voltage - Output 1	15V
Current - Output (Maximum)	5A
Power (Watts)	75W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Operating Temperature Range	-20°C ~ 85°C
Mounting Style	Through Hole
Package	Module
Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Win Source Part Number	791759-PH75S48-15
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PH75S48-15
Introduction Date	December 01, 2005
ECCN	EAR99
Country of Origin	Japan, Malaysia
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian PH75S48-15 CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc. PH75S48-15 is an isolated module type power supply that has a power capacity of 75W. It is designed to be mounted through a hole and is suitable for use in ITE (Commercial) applications.

Power: 75W
Mounting Style: Through Hole
Applications: ITE (Commercial)
Voltage Isolation: 3kV (3000V)
Output Voltage: 15V
Features: Remote On/Off, OCP, OVP
Halogen Free: Yes
ECCN: Compliant
EOL Date: Obsolete/End of Life
Supply and Demand Status: Limited
Alternative Parts: UWE-15/5-Q48NL1-C, RPR50-4815S-1, RPR50-4815S-1F, CES48150-4
