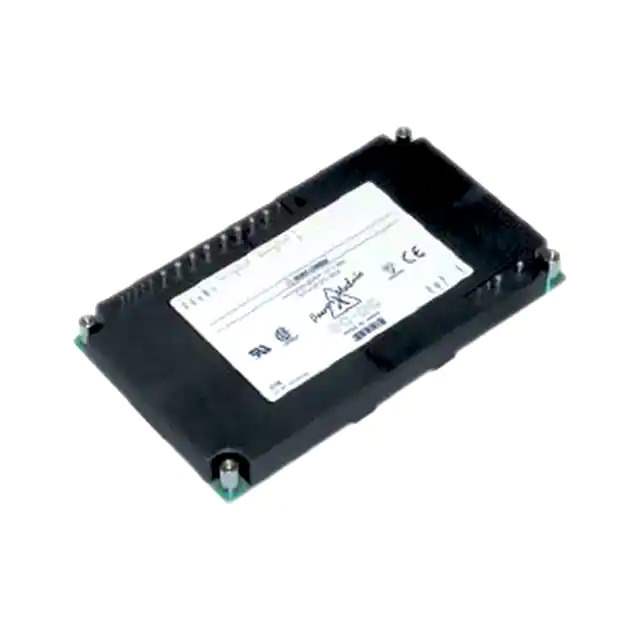

Same model may have multiple batches, images only for reference.

PH300F280-24

Name: PH300F280-24
Brand: TDK-Lambda Americas Inc.
SKU: 654503
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH300F280-24
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 300W
Datasheet	PH300F280-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-F (300W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	24V
Current - Output (Max)	12.6A
Power (Watts)	300 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	5.75" L x 3.39" W x 0.50" H (146.0mm x 86.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	654503-PH300F280-24
Ultra Librarian 3D Model	Ultra Librarian PH300F280-24 CAD Model

Alternative Products

Description

The PH300F280-24 is a power supply module from the PH-F series, designed for board mount applications.

Series: PH-F
Application: Board Mount
Power Output: 300W
Input Voltage Range: 200V to 400V
Dimensions: 5.75" L x 3.39" W x 0.50" H
Application: ITE (Commercial)
Output: Single, 24V
Maximum Output Current: 12.6A
Features: Remote On/Off, OCP, OVP
Mounting: Through Hole
Temperature Range: -20°C to 85°C
Voltage Isolation: 3 kV
Standard Package: 1 Piece
