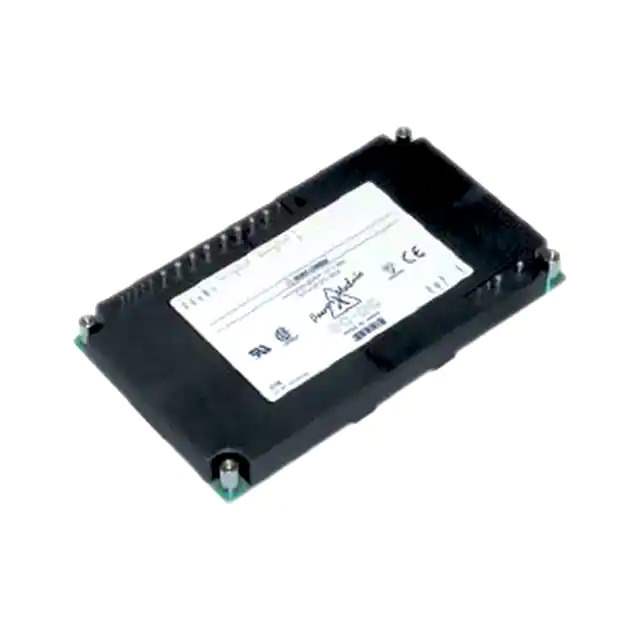

Same model may have multiple batches, images only for reference.

PH300F110-24

Name: PH300F110-24
Brand: TDK-Lambda Americas Inc.
SKU: 930335
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH300F110-24
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 300W / Isolated Module DC DC Converter 1 Output 24V 12.6A 82V - 185V Input
Datasheet	PH300F110-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-F (300W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	82V
Voltage - Input (Max)	185V
Voltage - Output 1	24V
Current - Output (Max)	12.6A
Power (Watts)	300 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	5.75" L x 3.39" W x 0.50" H (146.0mm x 86.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	930335-PH300F110-24
Ultra Librarian 3D Model	Ultra Librarian PH300F110-24 CAD Model

Alternative Products

Description

The PH300F110-24 is a 300W isolated module DC-DC converter from TDK-Lambda Americas Inc.

Series: PH-F series
Applications: ITE (commercial) applications
Size: 5.75" L x 3.39" W x 0.50" H (146.0mm x 86.0mm x 12.7mm)
Package: Bulk package
Power Rating: 300W
Output: Single output with a maximum current of 12.6A
Input Voltage Range: 82V to 185V
Output Voltage: Fixed @ 24V
Mounting: Through-hole mountable in a module package
Temperature Range: -20°C to 85°C
Product Status: Obsolete
