Same model may have multiple batches, images only for reference.

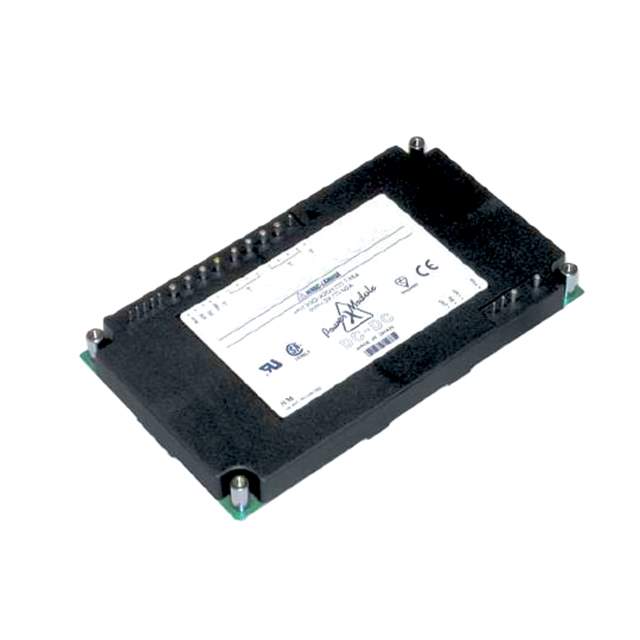

PH150S280-5 Real Image
Same model may have multiple batches, images only for reference.

PH150S280-5

Part No PH150S280-5
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONVERT DC-DC 5V 150W 30A / Module DC-DC 280VIN 1-OUT 5V 30A 150W 10-Pin
Datasheet
PH150S280-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer TDK-Lambda Americas Inc.
Series PH-S
Packaging Bulk
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 200V
Voltage Input MAX 400V
Voltage - Output 1 5V
Current - Output (Maximum) 30A
Power (Watts) 150W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Module
Dimension 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Win Source Part Number 791748-PH150S280-5
Popularity Medium
Supply and Demand Status Limited
Family Name PH150S280-5
Introduction Date December 01, 2005
ECCN EAR99
Country of Origin Japan, Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PH150S280-5 CAD Model

Description

The TDK-Lambda Americas Inc. PH150S280-5 is a 150W isolated module power supply with remote on/off, OCP, OTP, and OVP features. It has a voltage isolation of 3kV (3000V) and can handle an input voltage range of 200V to 400V.

  • Power: 150W
  • Features: Remote On/Off, OCP, OTP, OVP
  • Voltage Isolation: 3kV (3000V)
  • Input Voltage: 200V to 400V
  • Applications: ITE (Commercial)
  • Series: PH-S
  • Mounting Style: Through Hole
  • Dimensions: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
  • Alternative Parts: AIH40A300N-NTL, AIH40A300N-L, IQ4H050QTC30NRS-G, IQ4H050QTV30NRS-G
  • Introduction Date: December 01, 2005
  • Status: Obsolete (EOL)
  • ECCN: EAR99
  • Manufacturer: Japan, Malaysia
  • Supply and Demand Status: Limited
