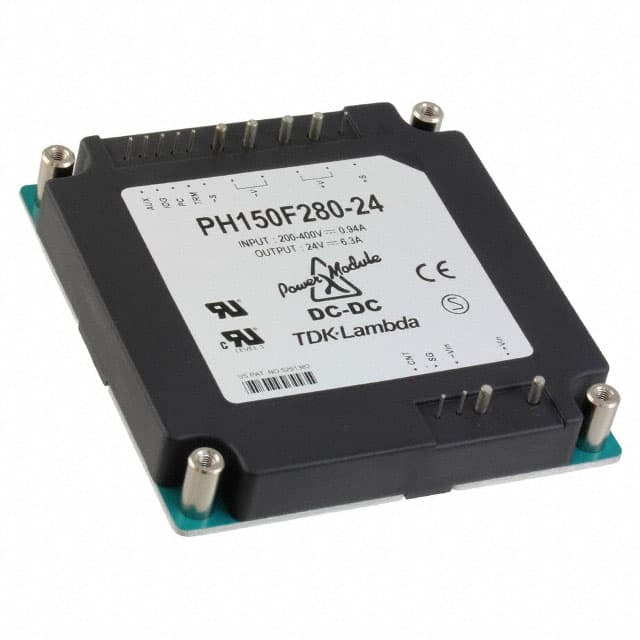

Same model may have multiple batches, images only for reference.

PH150F280-2

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PH150F280-2
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 2V 150W / Isolated Module DC DC Converter 1 Output 2V 30A 200V - 400V Input
Datasheet	PH150F280-2 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PH-F (150W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	2V
Current - Output (Max)	30A
Power (Watts)	150 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	3.39" L x 2.83" W x 0.50" H (86.0mm x 72.0mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	930331-PH150F280-2
Ultra Librarian 3D Model	Ultra Librarian PH150F280-2 CAD Model

Alternative Products

Description

The PH150F280-2 is an isolated module DC-DC converter from TDK-Lambda Americas Inc.

Series: PH-F (150W) series
Applications: Power supply applications in commercial information technology equipment (ITE)
Power Rating: 150W
Output Voltage: Single output voltage of 2V
Output Current: Maximum output current of 30A
Input Voltage Range: From 200V to 400V
Features: Remote On/Off, overcurrent protection (OCP), and overvoltage protection (OVP)
Size: 3.39" L x 2.83" W x 0.50" H
Mounting: Through hole
Temperature Range: -20°C to 85°C
Series Status: Obsolete
Package: Bulk
Applications: Commercial applications
