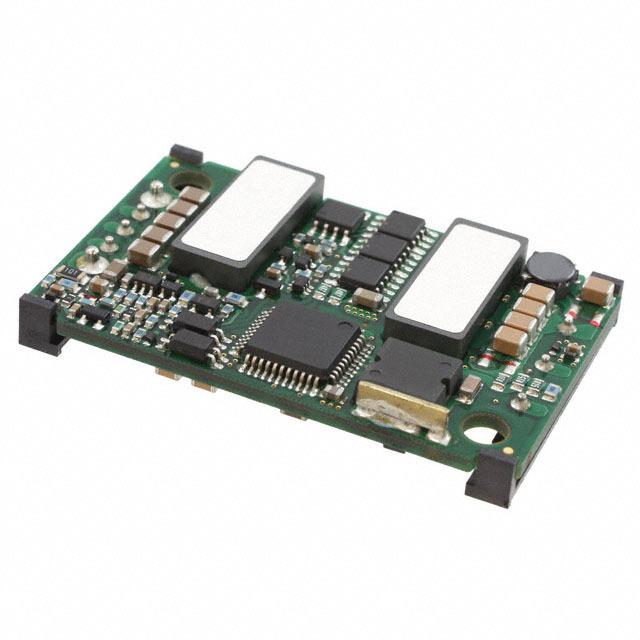

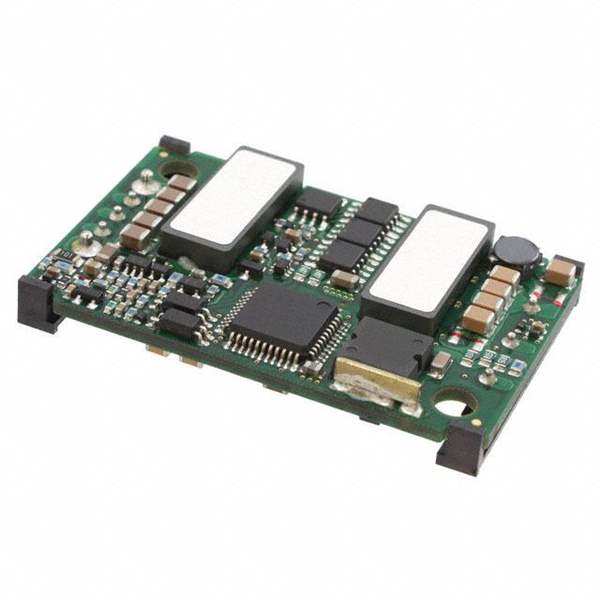

PAQ100S485 TDK-Lambda Americas Inc.
Same model may have multiple batches, images only for reference.

PAQ100S485

Part No PAQ100S485
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 5V 100W
Datasheet
PAQ100S485 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer TDK-Lambda Americas Inc.
Series PAQ100
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 5V
Current - Output (Max) 20A
Power (Watts) - Manufacture Series 100W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Mounting Style Through Hole
Package 8-DIP Module, 1/4 Brick
Size / Dimension 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.3mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 90%
Power (Watts) - Max 100W
Win Source Part Number 142498-PAQ100S485
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PAQ100S485 CAD Model

Description

The TDK-Lambda Americas Inc. 142498-PAQ100S485 is an electronic component that belongs to the power supplies - board mount category.

  • Manufacturer: TDK-Lambda Americas Inc.
  • Package: bulk
  • Mounting: through hole
  • Voltage Isolation: 1.5kV (1500V)
  • Current Output: 20A
