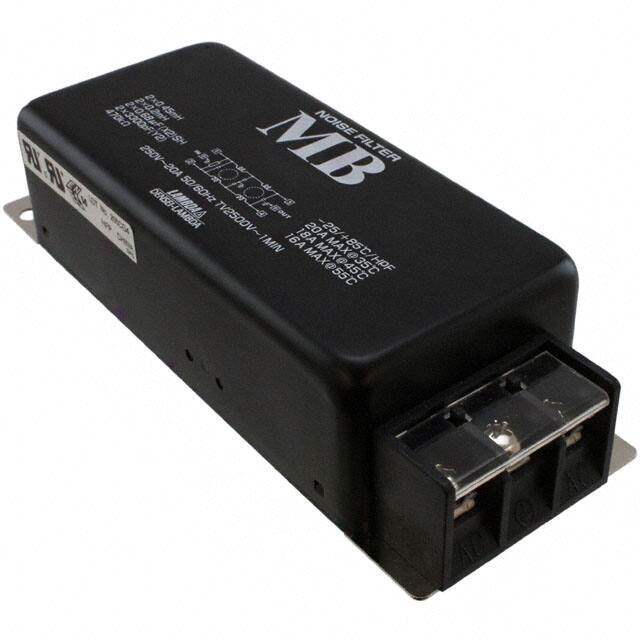

MB1220 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr TDK-Lambda Americas Inc.
Series MB
Package Bulk
Product Status Obsolete
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Current 20 A
Applications General Purpose
Approval Agency CSA, UL, VDE
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.4100
Win Source Part Number 925780-MB1220
Ultra Librarian 3D Model Ultra Librarian MB1220 CAD Model

Description

The 925780-MB1220 is a power line filter module from TDK-Lambda Americas Inc.'s MB series.

  • Application: general-purpose applications that require effective filtering of power lines
  • Configuration: two-stage configuration for enhanced filtering performance
  • Current Rating: 20A
  • Voltage Rating: rated for both DC and AC voltages up to 250V
  • Mounting: chassis mount technology
  • Operating Temperature Range: -25°C to 85°C
  • ECCN: compliant
  • REACH Status: no impact
  • HTSUS Code: 8504.90.4100
  • Product Status: obsolete
  • Approvals: CSA, UL, and VDE
