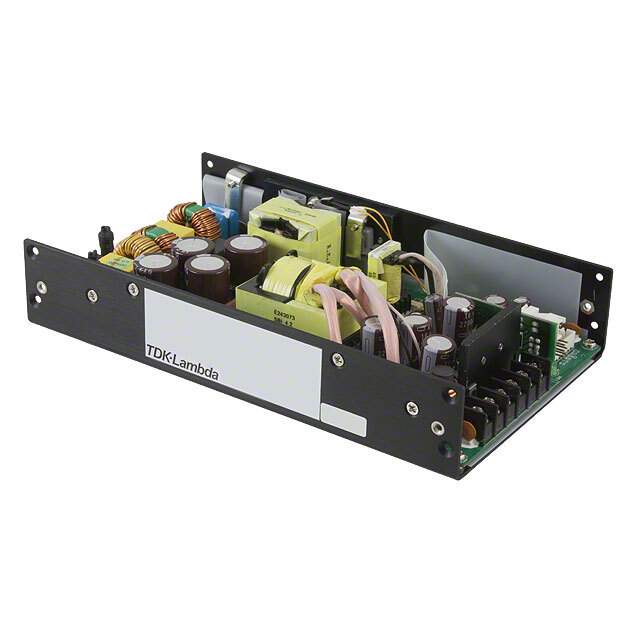

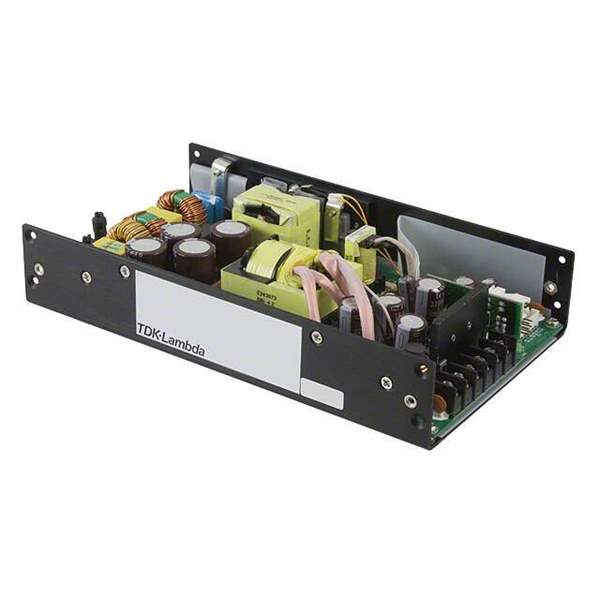

The TDK-Lambda Americas CSS500-36/S is an open-frame AC/DC converter that belongs to the CSS500 series. It features an adjustable output, load sharing, remote sense, standby output, and universal input. The device is designed for medical applications and has a power output of 360W (500W Forced Air). It has a voltage input range of 90 ~ 264 VAC and a voltage isolation of 4 kV. The device has a single output voltage of 36V with an efficiency of 87%. The operating temperature range of the device is 0°C ~ 70°C (With Derating). The device is chassis mountable and has a dimension of 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm). The device has a current output of 10A and is approved by CE. It is an excellent choice for medical applications.
- Series: CSS500
- Type: Open-Frame AC/DC Converter
- Features: Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input
- Application: Medical
- Power Output: 360W (500W Forced Air)
- Voltage Input: 90 ~ 264 VAC
- Voltage Isolation: 4 kV
- Output Voltage: 36V
- Efficiency: 87%
- Operating Temperature: 0°C ~ 70°C (With Derating)
- Mounting: Chassis Mount
- Dimension: 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm)
- Current Output: 10A
- Approval: CE
